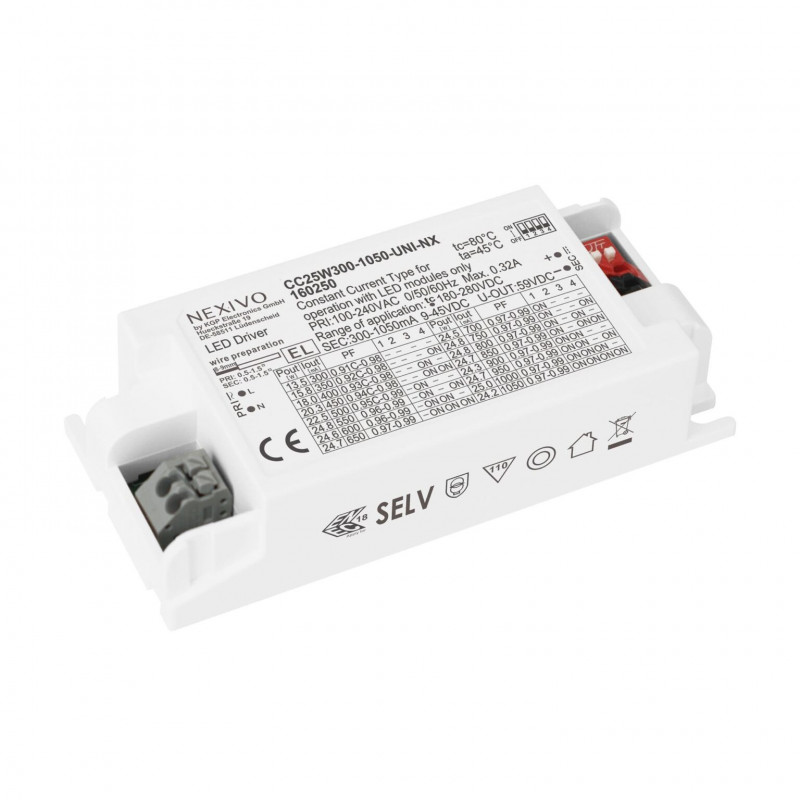

CC25W300-1050-UNI-NX

160250
Description

160250

CC25W300-1050-UNI-NX - 160250 - NEXIVO by KGP GMBH - Driver LED dimmable - Courant constant - Courant de sortie 300-1050 mA - Puissance jusqu’à 25 W - Tension de sortie 9-45 V - Tension d’entrée 100-240 VAC - PF ≥ 0,99 - THD ≤ 7% - Rendement 86,1-86,1% - Isolation - Class II - IP20 - Built-in / Independent - Dimensions 97,5 x 44 x 23 mm - Durée de vie 100000 h - Garantie 5 ans

Specific References a

LAS CODE 160250
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming ON OFF
Output Type Constant Current
Min Output Current mA 300
Min Input Voltage V 9
Max Output Voltage in V 45
Max Output Voltage in V 1050
Remote or Built In Built-in / Independent
IP RATING IP20
How To Program the Current? DIP switches
Length 97.5
Width 44
Heigth 23
KGP EQUIVALENT MODEL CC25W300-1050-UNI
