CC15W100-700-DALI-NFC-NX

157700
Description

157700

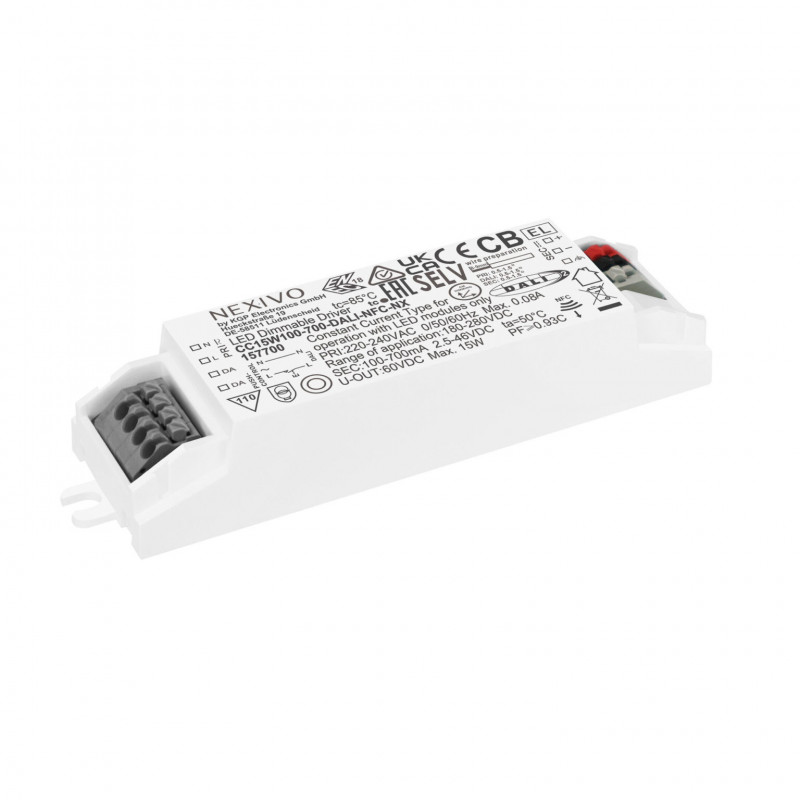

CC15W100-700-DALI-NFC-NX - 157700 - NEXIVO by KGP GMBH - Driver LED dimmable - Courant constant - Courant de sortie 100-700 mA - Puissance jusqu’à 15 W - Tension de sortie 2,5-46 V - Tension d’entrée 220-240 VAC - PF ≥ 0,93 - THD ≤ 11% - Rendement ≥ 87% - Isolation - Class II - IP20 - Built-in / Independent - Dimensions 103,4 x 30 x 21 mm - Durée de vie 100000 h - Garantie 5 ans

Specific References a

KGP EQUIVALENT CODE 122431
LAS CODE 157700
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming DALI
Output Type Constant Current
Min Output Current mA 100
Min Input Voltage V 2.5
Max Output Voltage in V 700
Max Output Voltage in V 46
Remote or Built In Built-in / Independent
IP RATING IP20
How To Program the Current? NFC
Length 103.4
Width 30
Heigth 21
KGP EQUIVALENT MODEL CC15W100-700-DALI-NFC
