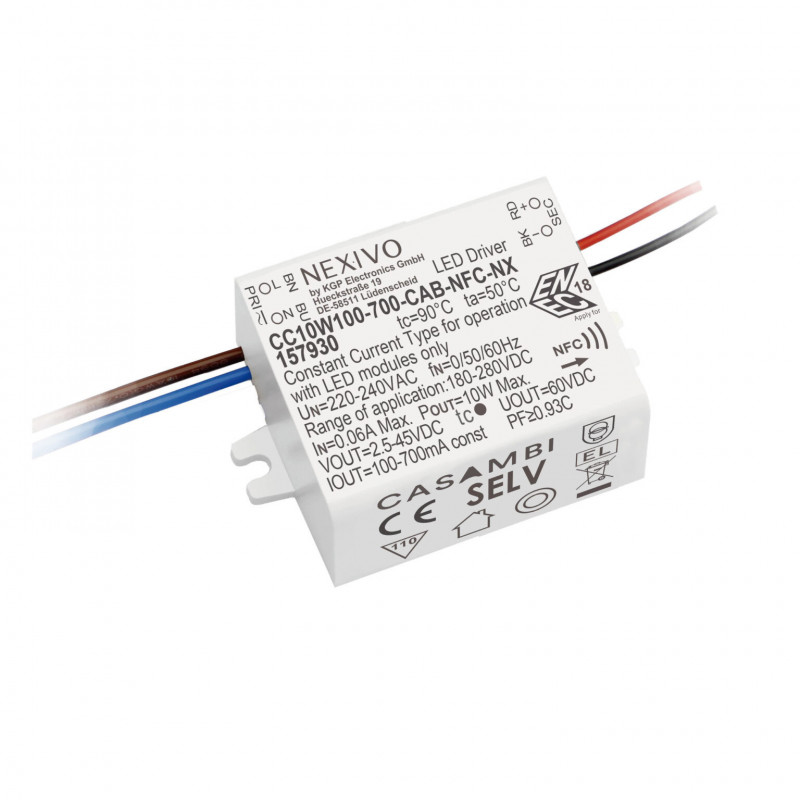

CC10W100-700-CAB-NFC-NX
  • CC10W100-700-CAB-NFC-NX
Attachments
Download
DATASHEET

CC10W100-700-CAB-NFC-NX.pdf

Download (717.2k)

CC10W100-700-CAB-NFC-NX

157930
Description

157930

CC10W100-700-CAB-NFC-NX - 157930 - NEXIVO by KGP GMBH - Driver LED dimmable - Courant constant - Courant de sortie 100-700 mA - Puissance jusqu’à 10 W - Tension de sortie 2,5-45 V - Tension d’entrée 220-240 VAC - PF ≥ 0,93 - THD ≤ 11% - Rendement ≥ 85% - Isolation - Class II - IP20 - Built-in - Dimensions 38 x 30 x 19,9 mm - Durée de vie 100000 h - Garantie 5 ans

Specific References a

LAS CODE 157930
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming CASAMBI
Output Type Constant Current
Min Output Current mA 100
Min Input Voltage V 2.5
Max Output Voltage in V 700
Max Output Voltage in V 45
Remote or Built In Built-in
IP RATING IP20
How To Program the Current? NFC
Length 38
Width 30
Heigth 19.9
KGP EQUIVALENT MODEL CC10W100-700-CAB-NFC
  • 24H Shipping 24H Shipping
