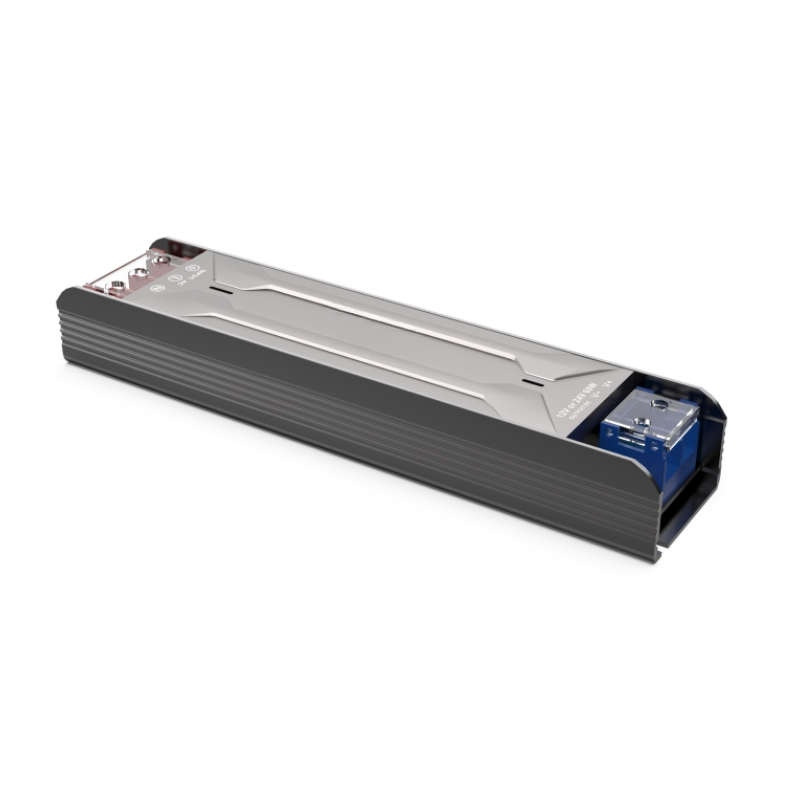

AUTO122448CV60W

Reference LAS-60WHCZ-12&24

60W Multi Output Auto CV Drivers

Description

Reference LAS-60WHCZ-12&24

LED Switching Power Supply (constant voltage) with intelligent recognition of LED strip working voltage.
Protections: short circuit / over load / over voltage / over temperature.
Soothing start (slow start), soft light and eye protection; three-stage dimming mode (100% → 50% → 15%) via power cycling within 2 seconds.
Indoor installation; cooling by free air convection.
175–264Vac input, 50Hz; PF > 0.55; no-load power consumption < 0.5W.
Ripple & noise: ≤150mV (12V), ≤200mV (24V/48V); linear regulation ±1%; load regulation ±1%.
Start-up time (typ.) 600ms @ 230Vac; hold-up time (typ.) 12ms @ 230Vac.
Working temperature: ta -30°C to 50°C; tc 80°C; humidity 20–99%RH non-condensing.
Safety/EMC: IEC/EN61347; IEC/EN60950; EN55015; EN61547; EN61000-3-2; EN61000-3-3; SELV; IP20; CE / RoHS / CB.
Dimensions: 170 × 35 × 23 mm; weight 130g ±10g.

Model: LAS-60WHCZ-12&24 — Output 12Vdc (±0.5V) max 5A or 24Vdc (±0.5V) max 2.5A; max 60W; efficiency (typ.) 86% (12V) / 87% (24V); ripple & noise ≤150mV (12V) / ≤200mV (24V).
Model: LAS-60WHCZ-24&48 — Output 24Vdc (±0.5V) max 2.5A or 48Vdc (±0.5V) max 1.25A; max 60W; efficiency (typ.) 88% (24V) / 89% (48V); ripple & noise ≤200mV (24V) / ≤300mV (48V).
Auto recovery protections: overload (≥110%–150% load) and short circuit (indicator flashes); overtemperature reduces output power then shuts down and auto-recovers after cooling.
