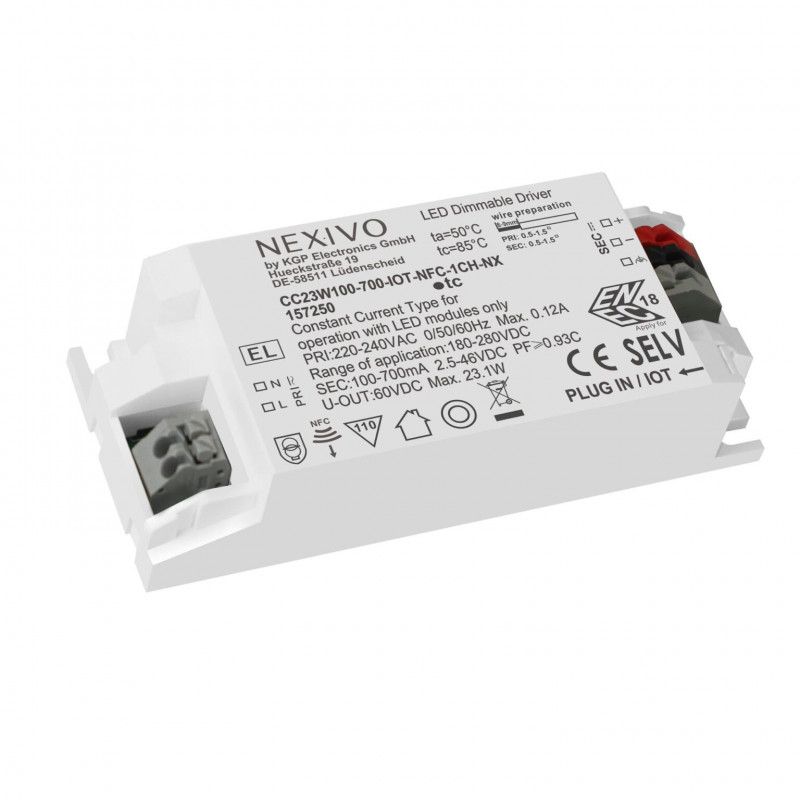

CC23W100-700-IOT-NFC-1CH-NX

157250
Description

157250

CC23W100-700-IOT-NFC-1CH-NX - 157250 - NEXIVO by KGP GMBH - Driver LED dimmable - Courant constant - Courant de sortie 100-700 mA - Puissance jusqu’à 23 W - Tension de sortie 2,5-46 V - Tension d’entrée 220-240 VAC - PF ≥ 0,93 - THD ≤ 15% - Rendement ≥ 87% - Isolation - Class II - IP20 - Built-in / Independent - Dimensions 97 x 43 x 22,8 mm - Durée de vie 100000 h - Garantie 5 ans

Specific References a

KGP EQUIVALENT CODE 124041
LAS CODE 157250
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming CASAMBI
Output Type Constant Current
Min Output Current mA 100
Min Input Voltage V 2.5
Max Output Voltage in V 700
Max Output Voltage in V 46
Remote or Built In Built-in / Independent
IP RATING IP20
How To Program the Current? NFC
Length 97
Width 43
Heigth 22.8
KGP EQUIVALENT MODEL CC23W100-700-IOT-NFC-1CH
