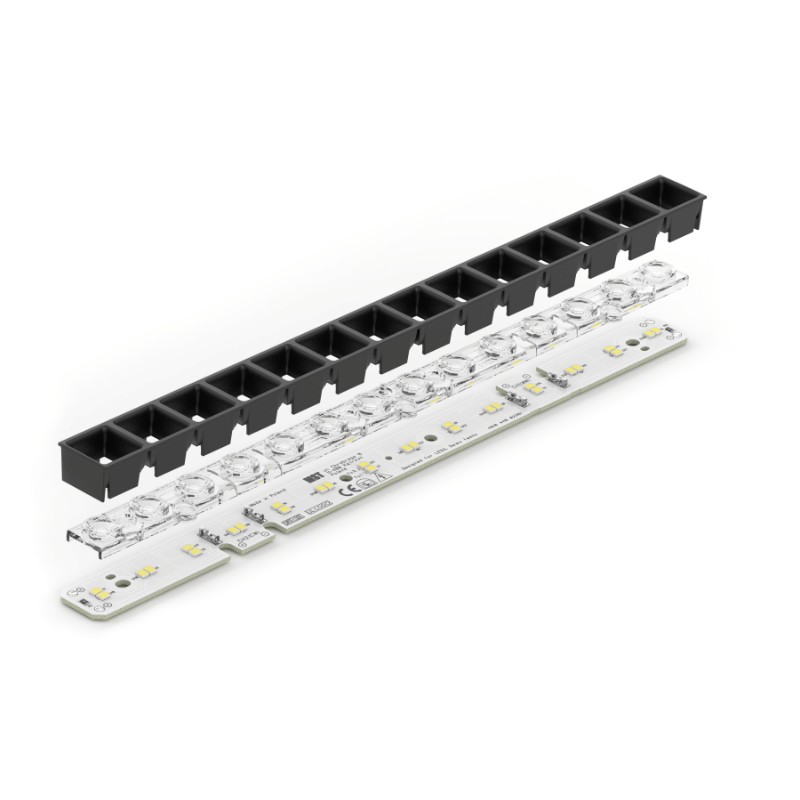

LINLED 280X18MM & 1120X18MM DAISY-MINI 4C LED MODULES

LinLED 280x18mm & 1120x18mm DAISY-MINI 4C
Up to 196lm/W - slim DAISY-MINI 4C modules
Description

LinLED 280x18mm & 1120x18mm DAISY-MINI 4C

  • MST built-in constant-current linear LED modules for premium indoor lighting, optimized for LEDiL DAISY-MINI optics.
  • Formats: 280x18mm nominal 1100lm and 1120x18mm nominal 4400lm; both have a 42V product designation and a 4C four-connector SELV parallel system.
  • CRI 80 CJ G4 at 3000K or 4000K; CRI 90 EH1.1 G3 at 2700K, 3000K or 4000K, in both lengths.
  • CJ G4 280mm at 4000K: 155mA, 38V forward voltage, 5.9W and 1150lm, up to 196lm/W. The 1120mm version delivers 4599lm at 620mA and 24W.
  • EH1.1 G3 280mm at 4000K: 170mA, 41V, 7W and 1141lm, up to 164lm/W. The 1120mm version delivers 4564lm at 680mA and 28W.
  • Parallel limits: 6 modules of 280mm or 1 of 1120mm. Modules connected in parallel must share the same V-code group.
  • 120° beam angle, 3 SDCM initial colour consistency and RG1 unlimited photobiological safety. Rated performance temperature 65°C; maximum safe case temperature 85°C. CE, ENEC, RoHS and REACH compliant.
  • Push-in terminals accept 0.2-0.5mm² solid or flexible wires, with a minimum strip length of 5.5mm.
  • No standalone IP rating; suitable protection must be provided by the luminaire.
  • CJ G4 3000K: 280 / 1120mm ordering codes: 1010 147 16646; 1010 147 16746.
  • CJ G4 4000K: 280 / 1120mm ordering codes: 1010 147 16846; 1010 147 16946.
  • EH1.1 G3 280mm: 2700K / 3000K / 4000K ordering codes: 1010 127 26446; 1010 127 26546; 1010 127 26646.
  • EH1.1 G3 1120mm: 2700K / 3000K / 4000K ordering codes: 1010 127 30046; 1010 127 30146; 1010 127 30246.
