LC75W900-1800-NFC-F-NX
  • LC75W900-1800-NFC-F-NX
Documents joints
Téléchargement
DATASHEET

LC75W900-1800-NFC-F-NX.pdf

Téléchargement (538.48k)

LC75W900-1800-NFC-F-NX

158250
Description

158250

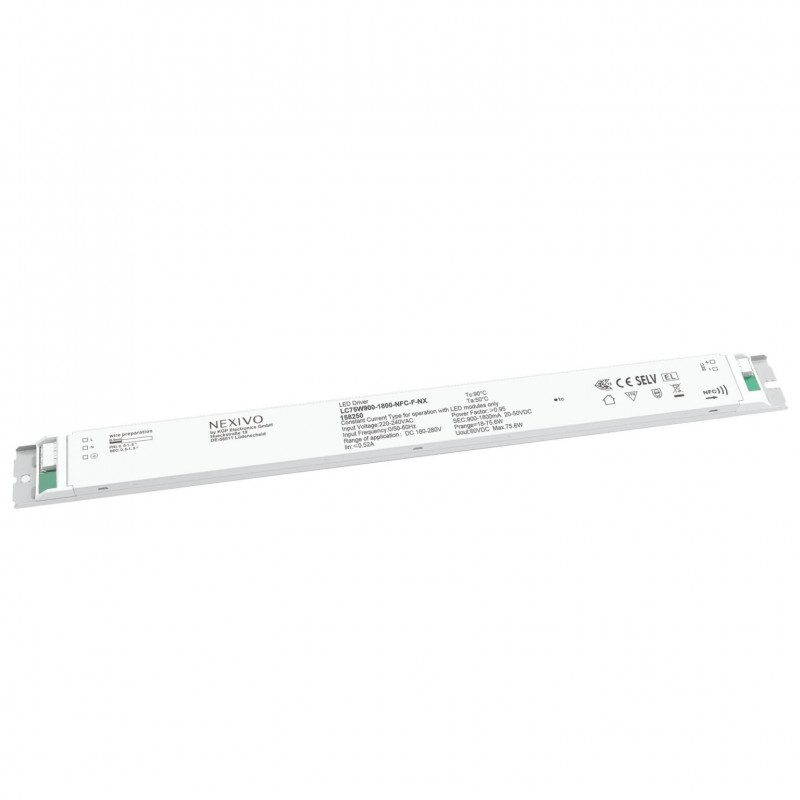

LC75W900-1800-NFC-F-NX - 158250 - NEXIVO by KGP GMBH - Driver LED - Courant constant - Courant de sortie 900-1800 mA - Puissance 18-75,6 W - Tension de sortie 20-50 V - Tension d’entrée 220-240 VAC - PF ≥ 0,95 - THD ≤ 5% - Rendement 89-89% - Isolation - Class I - IP20 - Built-in - Dimensions 360,4 x 30 x 11 mm - Durée de vie 100000 h - Garantie 5 ans

Références spécifiques a

LAS CODE 158250
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming ON OFF
Output Type Constant Current
Min Output Current mA 900
Min Input Voltage V 20
Max Output Voltage in V 1800
Max Output Voltage in V 50
Remote or Built In Built-in
IP RATING IP20
How To Program the Current? NFC
Length 360.4
Width 30
Heigth 11
KGP EQUIVALENT MODEL LC75W900-1800-NFC-F
