C-23-R-XP-MF

C-23-R-XP-MF

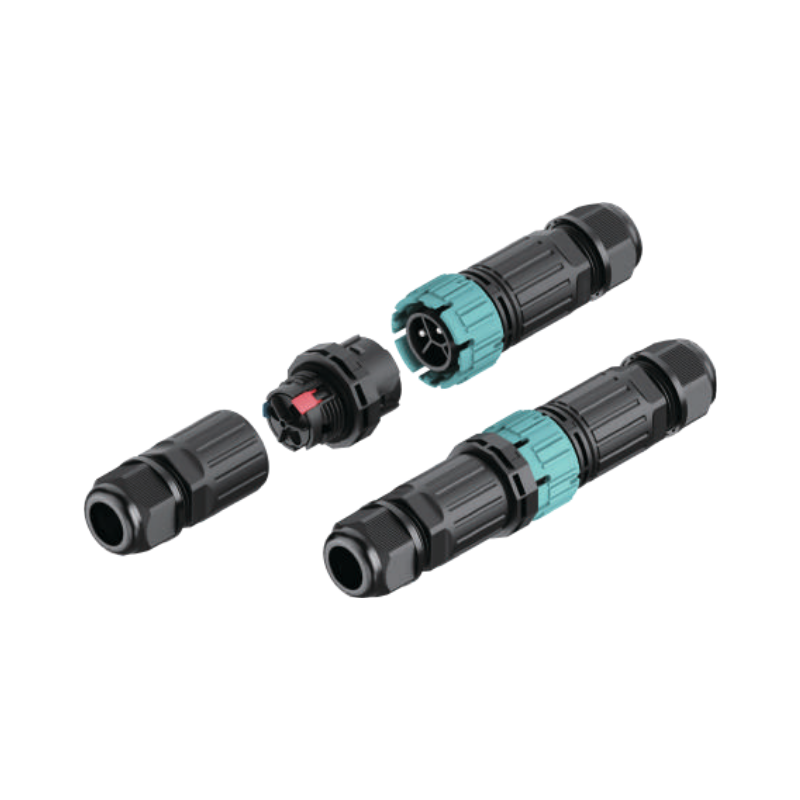

IP68 screwless male female connector 2/3pins
Description

C-23-R-XP-MF

  • ● (Male & Female) IP68 screwless fast‑wiring connector.
  • ● Available in 2‑pin and 3‑pin versions.
  • ● PA66 housing with silicone rubber seal.
  • ● Cable diameter options: 5–9mm and 9–12mm.
  • ● Rated 16A / 450V.
  • ● Wire section: 0.5–2.5mm².
  • ● Tool‑free quick connection system.
  • ● 1,500 mating cycles.
  • ● Operating temperature: –40°C to +105°C.
  • ● 3‑year warranty.
