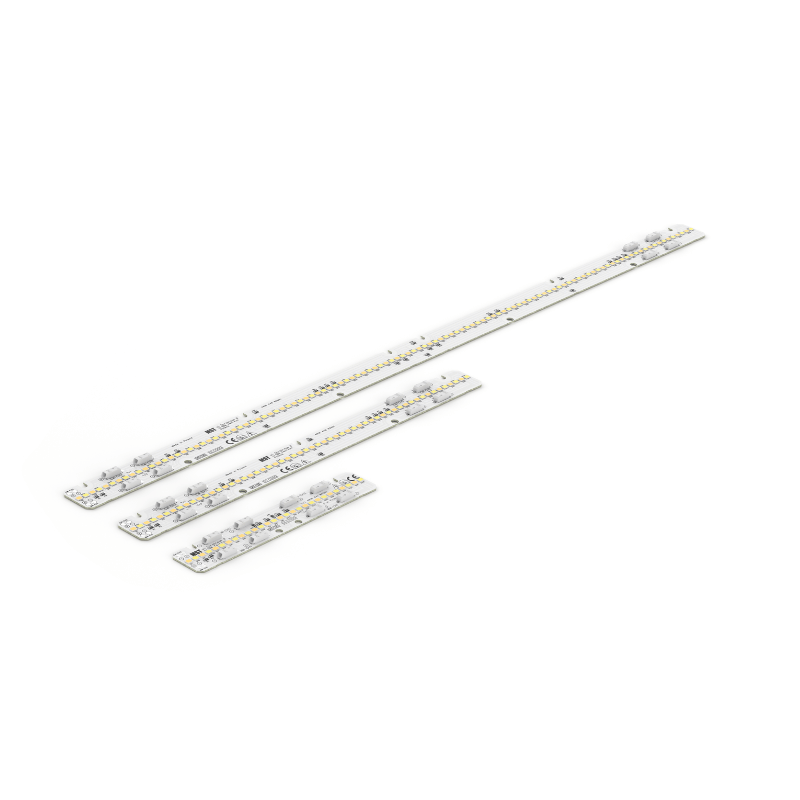

LINLED TUNABLE WHITE 2X4C LED MODULES
LinLED Tunable White 2x4C
2700-6500K - SELV tunable-white linear modules
Description
LinLED Tunable White 2x4C
- MST built-in constant-current tunable-white linear LED modules with separate warm-white and cool-white channels spanning 2700-6500K.
- 140x24mm, 280x24mm and 560x24mm formats, nominal 2x500lm, 2x1000lm and 2x2000lm, all designated 42V. The 2x4C system is intended for SELV parallel wiring.
- CRI 80 CN G3 and CRI 90 EH1.1 G3 variants; other CCT and CRI on request.
- CN G3 280mm per channel: 150mA, 38V forward voltage and 5.7W, delivering 984lm at 2700K or 1067lm at 6500K; efficacy up to 186lm/W.
- EH1.1 G3 280mm per channel: 160mA, 41V and 6.5W, delivering 1020lm at 2700K or 1083lm at 6500K; efficacy up to 166lm/W.
- Parallel limits: 8 modules of 140mm, 4 of 280mm or 2 of 560mm. Match modules by V-code group for uniform intensity in parallel.
- 120° beam angle, 3 SDCM initial colour consistency and RG1 unlimited photobiological safety. Rated performance temperature 65°C; maximum safe case temperature 85°C. CE, ENEC, RoHS and REACH compliant.
- Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
- No standalone IP rating; suitable protection must be provided by the luminaire.
- CN G3 CRI 80: 140 / 280 / 560mm ordering codes: 1010 137 81946; 1010 137 82046; 1010 137 82146.
- EH1.1 G3 CRI 90: 140 / 280 / 560mm ordering codes: 1010 127 38746; 1010 127 13946; 1010 127 14046.
-
