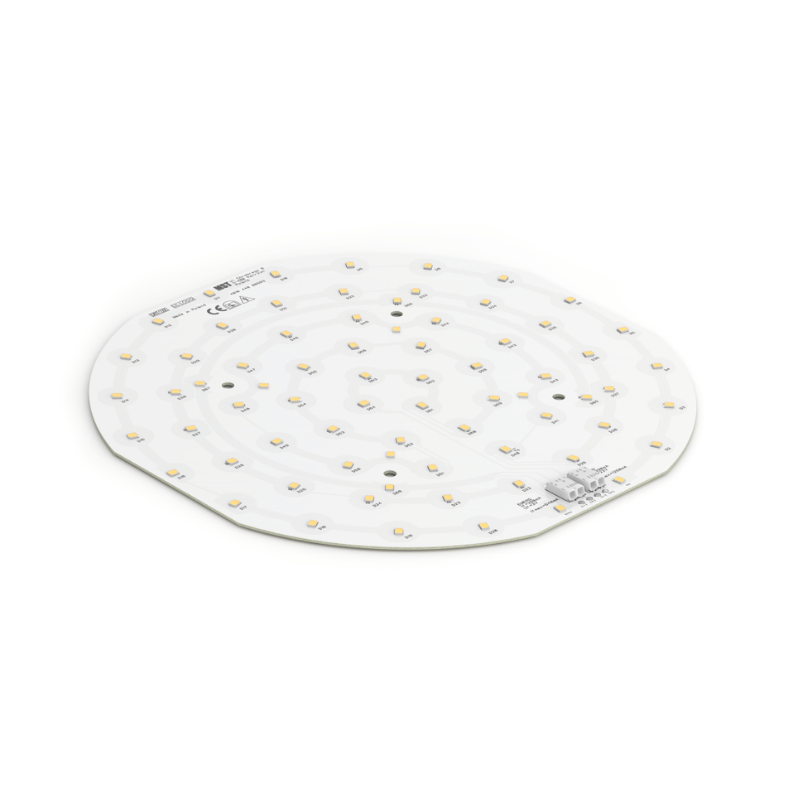

RDLED 220MM EMG LED MODULES

RdLED 220mm EMG
Up to 202lm/W - round modules with emergency circuit
Description

RdLED 220mm EMG

  • MST built-in constant-current round LED modules, 220mm, nominal 1500lm/24V, with separate main and emergency circuits.
  • CRI 80 CJ G4, CN G3 and LG G2 at 3000K or 4000K, in EMG and EMG SSW variants. CRI 90 EH1.1 G3 EMG versions are listed at 2700K, 3000K and 4000K. SSW is retained as the manufacturer's variant designation.
  • CJ G4 at 4000K: main circuit 360mA, 7.7W and 1548lm, up to 202lm/W; emergency circuit 360mA, 2.7V, 1W and 189lm.
  • CN G3 at 4000K: main circuit 370mA, 21.4V, 7.9W and 1545lm; emergency circuit 189lm at 370mA and 1W. LG G2 main circuit delivers 1562lm at 380mA and 8.3W, with 183lm emergency output.
  • EH1.1 G3 CRI 90 at 4000K: main circuit 390mA, 22V, 8.7W and 1559lm; emergency circuit 390mA, 3V, 1.2W and 184lm.
  • Follow the separate MAIN and EMERG wiring and use the appropriate LED driver and emergency supply. The family description states CCT availability from 2200K to 6500K.
  • 120° beam angle, 3 SDCM initial colour consistency and RG1 unlimited photobiological safety. Rated performance temperature 65°C; maximum safe case temperature 85°C. CE, ENEC, RoHS and REACH compliant.
  • Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
  • No standalone IP rating; suitable protection must be provided by the luminaire.
  • CJ G4: 3000K EMG / EMG SSW, then 4000K EMG / EMG SSW ordering codes: 1010 137 59746; 1010 137 59846; 1010 137 46846; 1010 137 59946.
  • CN G3: 3000K EMG / EMG SSW, then 4000K EMG / EMG SSW ordering codes: 1010 147 66146; 1010 147 66946; 1010 147 66246; 1010 147 67046.
  • LG G2: 3000K EMG / EMG SSW, then 4000K EMG / EMG SSW ordering codes: 1010 147 65946; 1010 147 66746; 1010 147 66046; 1010 147 66846.
  • EH1.1 G3 EMG: 2700K / 3000K / 4000K ordering codes: 1010 117 42246; 1010 117 42346; 1010 117 42446.
