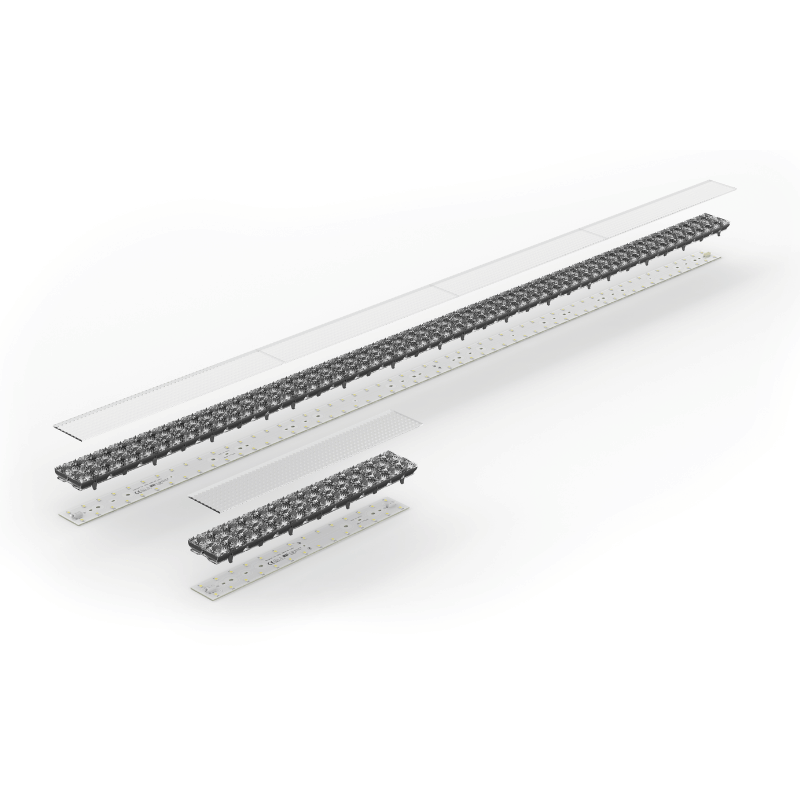

LINLED 1000LM PER 1FT 2C DIANA-40 LED MODULES

Reference LinLED 1000lm per 1ft 2C DIANA-40

Up to 210lm/W - DIANA-40 non-SELV modules

Description

Reference LinLED 1000lm per 1ft 2C DIANA-40

MST built-in constant-current linear LED modules for premium indoor lighting, optimized for LEDiL DIANA-40 optics, with a 2C two-connector non-SELV series system.
277x30mm nominal 1000lm/21V and 1118x30mm nominal 4000lm/84V. CRI 80 CE-30 G6 and CRI 90 CE-30 K G7 families.
CE-30 G6 CRI 80 at 4000K: 277mm delivers 1042lm at 265mA, 19V forward voltage and 5W; 1118mm delivers 4166lm at 265mA, 75V and 20W. Efficacy up to 210lm/W.
CE-30 G6 at 3000K delivers 976lm for 277mm or 3906lm for 1118mm, at 197lm/W. Current range 40-600mA.
CE-30 K G7 CRI 90 versions use 275mA, with listed efficacy from 194 to 199lm/W. The supplied CRI 90 table contains inconsistent CCT information: product names use 930/940, while the temperature column prints 2700/6500/3000/4000K. Ordering codes are retained under the printed 930/940 designations; confirm the exact CCT with MST before ordering.
Series limits: 16 modules of 277mm or 4 of 1118mm. Mixed lengths must not exceed 4472mm total.
120° beam angle, 3 SDCM and RG1 unlimited. Rated performance temperature 65°C; maximum safe case temperature 85°C. CE, RoHS and REACH compliant; ENEC is not declared.
Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
No standalone IP rating; suitable protection must be provided by the luminaire.
CE-30 G6 CRI 80 3000K: 277 / 1118mm ordering codes: 1010 147 70546; 1010 147 70646.
CE-30 G6 CRI 80 4000K: 277 / 1118mm ordering codes: 1010 147 70746; 1010 147 70846.
CE-30 K G7 CRI 90 designation 930: 277 / 1118mm; CCT to confirm ordering codes: 1010 147 70946; 1010 147 71046.
CE-30 K G7 CRI 90 designation 940: 277 / 1118mm; CCT to confirm ordering codes: 1010 147 71146; 1010 147 71246.
