LV30W24CG-DALI-NX
  • LV30W24CG-DALI-NX
Attachments
Download
DATASHEET

LV30W24CG-DALI-NX.pdf

Download (2.21M)

LV30W24CG-DALI-NX

158590
Description

158590

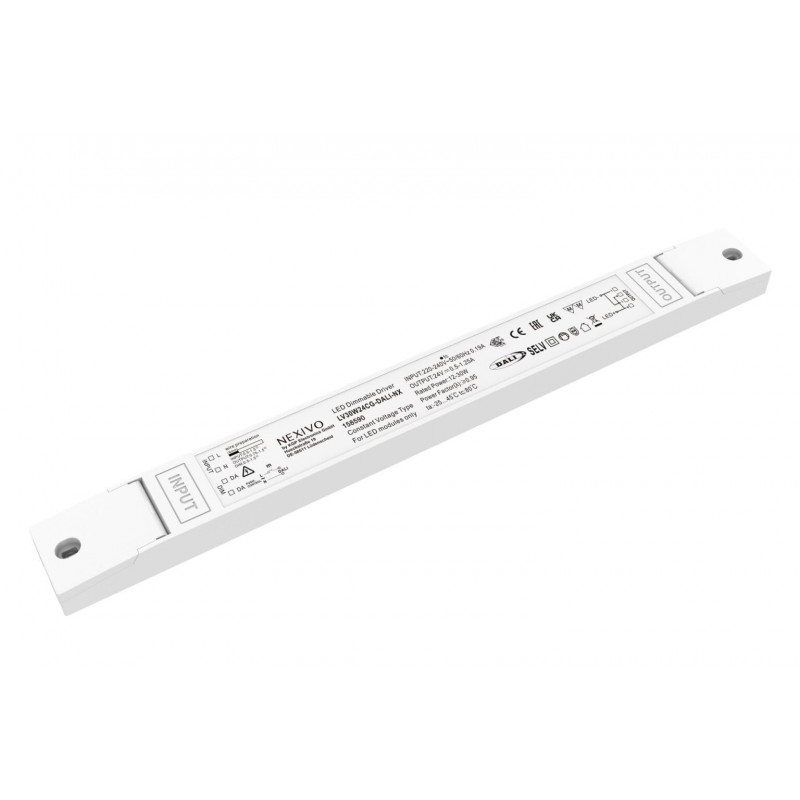

LV30W24CG-DALI-NX - 158590 - NEXIVO by KGP GMBH - Driver LED dimmable - Tension constante - Courant de sortie 500-1250 mA - Puissance 12-30 W - Tension de sortie 24-24 V - Tension d’entrée 220-240 VAC - PF ≥ 0,95 - THD ≤ 10% - Rendement 86-86% - Isolation SELV - Class II - IP20 - Independent - Dimensions 300 x 30 x 16 mm - Durée de vie 80000 h - Garantie 5 ans

Specific References a

KGP EQUIVALENT CODE 140921
LAS CODE 158590
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming DALI
Output Type Constant Voltage
Min Output Current mA 500
Min Input Voltage V 24
Max Output Voltage in V 24
Max Output Voltage in V 1250
Remote or Built In Independent
IP RATING IP20
How To Program the Current? N/A
Length 300
Width 30
Heigth 16
KGP EQUIVALENT MODEL LV30W24CG-DALI
