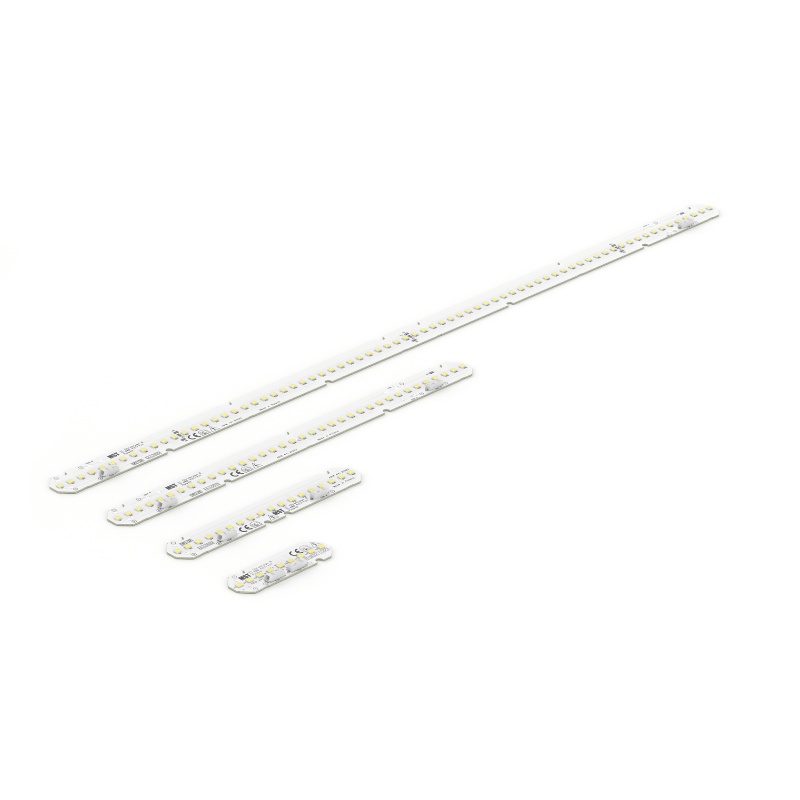

LINLED 1100LM 36V PER 1FT 2C LED MODULES

Reference LinLED 1100lm 36V per 1ft 2C

Up to 208lm/W - 20mm-wide non-SELV modules

Description

Reference LinLED 1100lm 36V per 1ft 2C

MST built-in constant-current linear LED module family for non-SELV series systems, nominal 1100lm/36V per 1ft.
Available lengths: 70, 140, 280, 560, 1120 and 1400mm, all 20mm wide. Nominal designations range from 275lm/9V to 5500lm/180V. The 1120mm and 1400mm products are designated 2C+R; shorter products are 2C.
3000K and 4000K versions. CRI 80 families: S8 G5, CJ G4, CN G3 and ST5 G2. CRI 90 families: S8 K G7, S5 K G6 and EH1.1 G3; the listed EH1.1 G3 range covers 70-560mm.
S8 G5 280x20mm at 4000K: 170mA, 32V forward voltage, 5.4W and 1135lm, up to 208lm/W; the 1400mm version delivers 5674lm at 27W.
S8 K G7 CRI 90 280mm at 4000K: 175mA, 32V, 5.6W and 1155lm, up to 206lm/W.
Series limits by length: 36 modules of 70mm, 18 of 140mm, 9 of 280mm, 4 of 560mm, 2 of 1120mm or 1 of 1400mm. Mixed lengths must not exceed 2520mm total.
120° beam angle, 3 SDCM initial colour consistency and RG1 unlimited photobiological safety. Rated performance temperature 65°C; maximum safe case temperature 85°C.
Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
CE, ENEC, RoHS and REACH compliant. Built-in modules require suitable luminaire protection; no standalone IP rating.
S8 G5 3000K: 70 / 140 / 280 / 560 / 1120 / 1400mm ordering codes: 1010 147 98646; 1010 147 98746; 1010 147 98846; 1010 147 98946; 1010 147 99046; 1010 147 99146.
S8 G5 4000K: 70 / 140 / 280 / 560 / 1120 / 1400mm ordering codes: 1010 147 99246; 1010 147 99346; 1010 147 99446; 1010 147 99546; 1010 147 99646; 1010 147 99746.
CJ G4 3000K: 70 / 140 / 280 / 560 / 1120 / 1400mm ordering codes: 1010 127 92546; 1010 127 92646; 1010 127 92746; 1010 127 92846; 1010 127 92946; 1010 127 93046.
CJ G4 4000K: 70 / 140 / 280 / 560 / 1120 / 1400mm ordering codes: 1010 127 93146; 1010 127 93246; 1010 127 93346; 1010 127 93446; 1010 127 93546; 1010 127 93646.
CN G3 3000K: 70 / 140 / 280 / 560mm ordering codes: 1010 137 71146; 1010 137 71246; 1010 137 71346; 1010 137 71446.
CN G3 3000K: 1120 / 1400mm ordering codes: 1010 147 10246; 1010 147 10346.
CN G3 4000K: 70 / 140 / 280 / 560mm ordering codes: 1010 137 71546; 1010 137 71646; 1010 137 71746; 1010 137 71846.
CN G3 4000K: 1120 / 1400mm ordering codes: 1010 147 10446; 1010 147 10546.
ST5 G2 3000K: 70 / 140 / 280 / 560 / 1120 / 1400mm ordering codes: 1010 147 17646; 1010 147 17746; 1010 147 17846; 1010 147 17946; 1010 147 18046; 1010 147 18146.
ST5 G2 4000K: 70 / 140 / 280 / 560 / 1120 / 1400mm ordering codes: 1010 147 18246; 1010 147 18346; 1010 147 18446; 1010 147 18546; 1010 147 18646; 1010 147 18746.
S8 K G7 3000K: 70 / 140 / 280 / 560 / 1120 / 1400mm ordering codes: 1010 147 18846; 1010 147 18946; 1010 147 19046; 1010 147 19146; 1010 147 19246; 1010 147 19346.
S8 K G7 4000K: 70 / 140 / 280 / 560 / 1120 / 1400mm ordering codes: 1010 147 19446; 1010 147 19546; 1010 147 19646; 1010 147 19746; 1010 147 19846; 1010 147 19946.
S5 K G6 3000K: 70 / 140 / 280 / 560 / 1120 / 1400mm ordering codes: 1010 147 20046; 1010 147 20146; 1010 147 20246; 1010 147 20346; 1010 147 20446; 1010 147 20546.
S5 K G6 4000K: 70 / 140 / 280 / 560 / 1120 / 1400mm ordering codes: 1010 147 20646; 1010 147 20746; 1010 147 20846; 1010 147 20946; 1010 147 21046; 1010 147 21146.
EH1.1 G3 70mm, 3000K / 4000K ordering codes: 1010 127 21146; 1010 127 21246.
EH1.1 G3 3000K: 140 / 280 / 560mm ordering codes: 1010 117 34246; 1010 117 34546; 1010 117 35446.
EH1.1 G3 4000K: 140 / 280 / 560mm ordering codes: 1010 117 34346; 1010 117 34646; 1010 117 35546.
