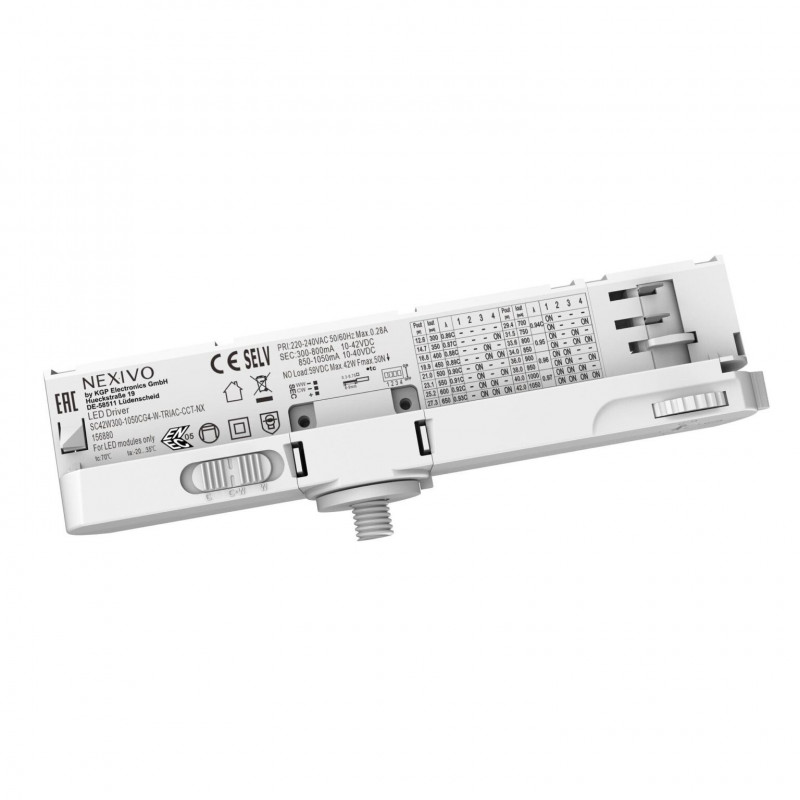

SC42W300-1050CG4-W-TRIAC-CCT-NX
  • SC42W300-1050CG4-W-TRIAC-CCT-NX
Attachments
Download
DATASHEET

SC42W300-1050CG4-W-TRIAC-CCT-NX.pdf

Download (919.17k)

SC42W300-1050CG4-W-TRIAC-CCT-NX

156880
Description

156880

SC42W300-1050CG4-W-TRIAC-CCT-NX - 156880 - NEXIVO by KGP GMBH - Driver LED dimmable - Courant constant - Courant de sortie 300-1050 mA - Puissance de sortie 2,8-44 W - Tension de sortie 10-40 V - Tension d’entrée 220-240 VAC - PF ≥ 0,93 - THD ≤ 15% - Rendement ≥ 86% - Isolation - Class II - IP20 - Independent - Dimensions 178,5 x 31 x 42,1 mm - Durée de vie 50000 h - Garantie 5 ans

Specific References a

KGP EQUIVALENT CODE 151631
LAS CODE 156880
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming TRIAC
Output Type Constant Current
Min Output Current mA 300
Min Input Voltage V 10
Max Output Voltage in V 1050
Max Output Voltage in V 40
Remote or Built In Independent
IP RATING IP20
How To Program the Current? DIP switches
Length 178.5
Width 31
Heigth 42.1
KGP EQUIVALENT MODEL SC42W300-1050CG4-W-TRIAC-CCT
