CC23W100-700P-DALI-NFC-NX
  • CC23W100-700P-DALI-NFC-NX
Attachments
Download
DATASHEET

CC23W100-700P-DALI-NFC-NX.pdf

Download (644.39k)

CC23W100-700P-DALI-NFC-NX

162050
Description

162050

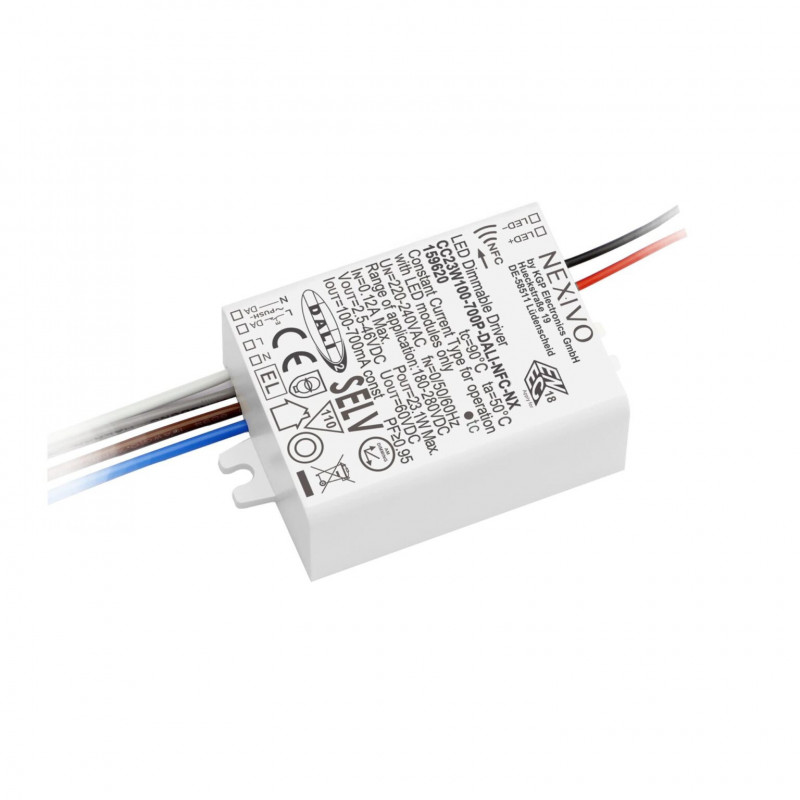

CC23W100-700P-DALI-NFC-NX - 162050 - NEXIVO by KGP GMBH - Driver LED dimmable - Courant constant - Courant de sortie 100-700 mA - Puissance jusqu’à 23 W - Tension de sortie 2,5-46 V - Tension d’entrée 220-240 VAC - PF ≥ 0,95 - THD ≤ 10% - Rendement ≥ 88% - Isolation - Class II - IP20 - Built-in - Dimensions 64,5 x 40 x 23 mm - Durée de vie 100000 h - Garantie 5 ans

Specific References a

KGP EQUIVALENT CODE 124081
LAS CODE 162050
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming DALI
Output Type Constant Current
Min Output Current mA 100
Min Input Voltage V 2.5
Max Output Voltage in V 700
Max Output Voltage in V 46
Remote or Built In Built-in
IP RATING IP20
How To Program the Current? NFC
Length 64.5
Width 40
Heigth 23
KGP EQUIVALENT MODEL CC23W100-700P-DALI-NFC
