LV150W48CG-NX

158650
Description

158650

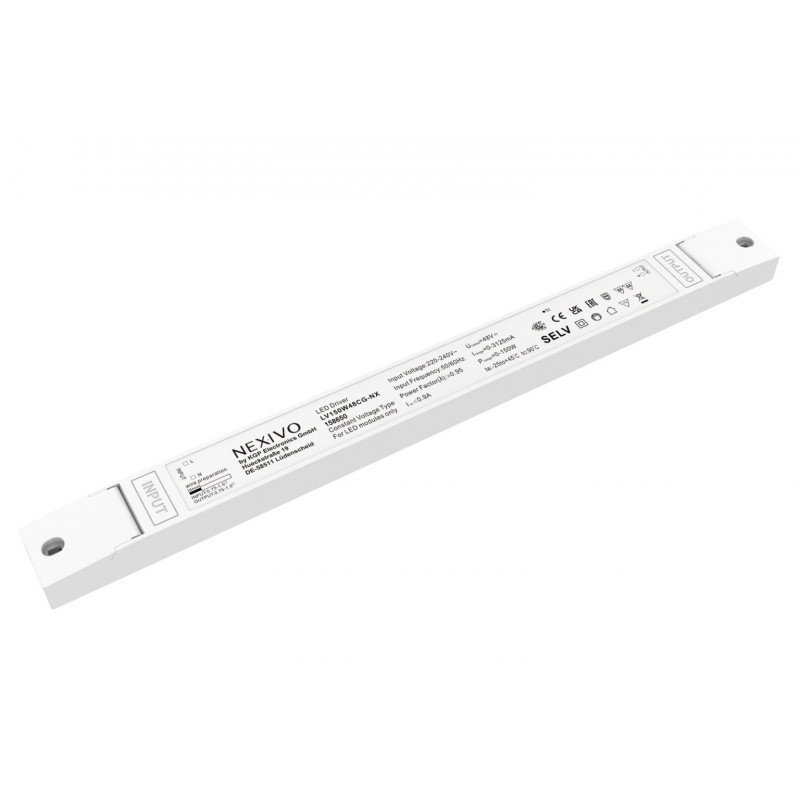

LV150W48CG-NX - 158650 - NEXIVO by KGP GMBH - Driver LED - Tension constante - Courant de sortie 0-3130 mA - Puissance 0-150 W - Tension de sortie 48-48 V - Tension d’entrée 220-240 VAC - PF ≥ 0,95 - THD ≤ 7% - Rendement 92-92% - Isolation SELV - Class II - IP20 - Independent - Dimensions 350 x 30 x 18 mm - Durée de vie 100000 h - Garantie 5 ans

Specific References a

LAS CODE 158650
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming ON OFF
Output Type Constant Voltage
Min Output Current mA 0
Min Input Voltage V 48
Max Output Voltage in V 48
Max Output Voltage in V 3130
Remote or Built In Independent
IP RATING IP20
How To Program the Current? N/A
Length 350
Width 30
Heigth 18
KGP EQUIVALENT MODEL LV150W48CG
