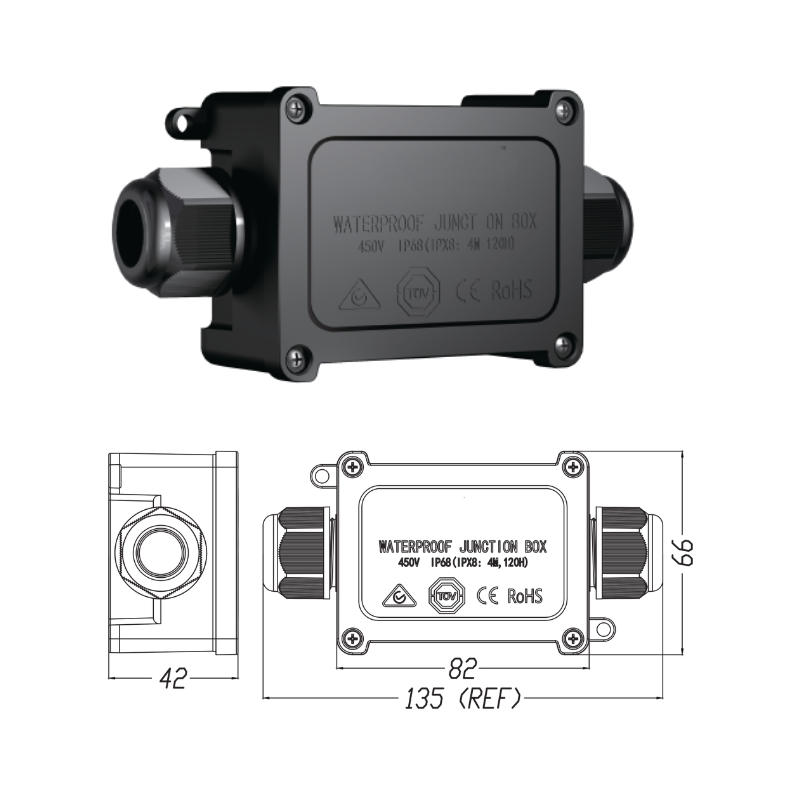

Small Terminal Box IP68
BOX135992T
135x99 In Out
Description
BOX135992T
- IP68 waterproof external junction box / straight-through 2-way cable connector for reliable outdoor and wet-location electrical connections.
- Model BOX-135*99-2T with T1 and T2 M25 cable entries.
- Terminal block screw wiring inside the junction box for secure cable connection.
- Housing material: PA66; seal ring material: silicone rubber; terminal material: copper alloy.
- IP68 rated protection against dust and water ingress for demanding installation environments.
- Fire rating: UL94 V-0.
- Rated voltage 450V and rated current 40A.
- Suitable wire section: 0.5–6mm².
- Outer cable diameter compatibility for M25: 5–9mm, 9–12mm and 10–14mm.
- Ambient operating temperature range: -40°C to +105°C.
- Warranty: 3 years.
- Model: BOX-135*99-2T — IP68 2-way waterproof junction box / straight-through cable connector.
- Packaging: 1 pc per zip bag, 100 pcs per carton.
- Export carton size: 54 × 43 × 30 cm; net weight 12.5 kg; gross weight 13.5 kg.
-
