• New
CV50W24CG-Triac-NX
  • CV50W24CG-Triac-NX
Attachments
Download
DATASHEET

CV50W24CG-Triac-NX.pdf

Download (359.32k)

CV50W24CG-Triac-NX

158820
Description

158820

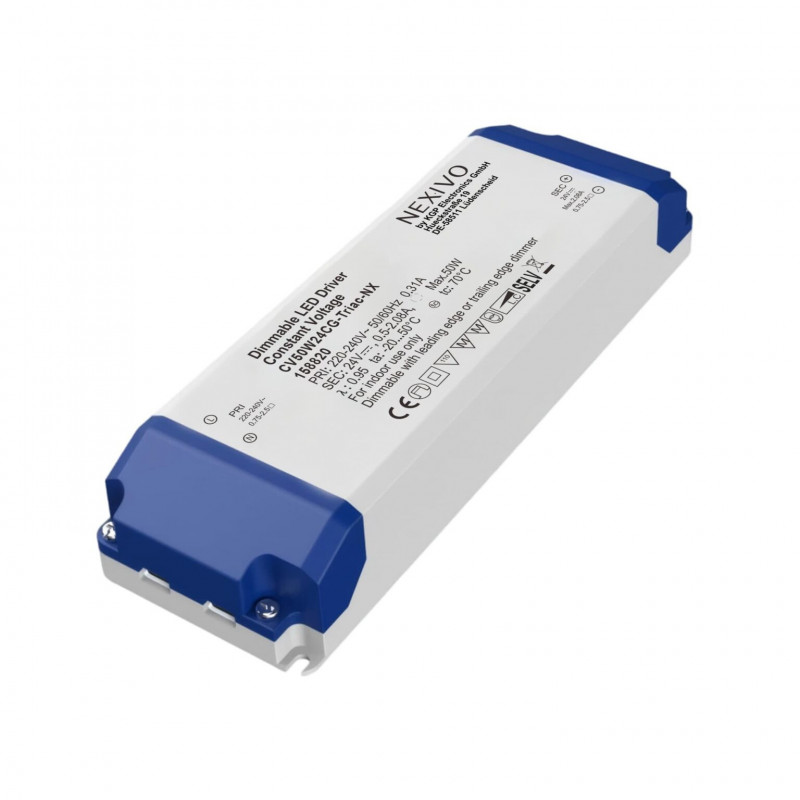

CV50W24CG-Triac-NX - 158820 - NEXIVO by KGP GMBH - Driver LED dimmable - Tension constante - Courant de sortie 500-2080 mA - Puissance 12-50 W - Tension de sortie 24-24 V - Tension d’entrée 220-240 VAC - PF ≥ 0,95 - THD ≤ 20% - Rendement 86-86% - Isolation - Class II - IP20 - Independent - Dimensions 184 x 61 x 32 mm - Durée de vie 50000 h - Garantie 5 ans

Specific References a

KGP EQUIVALENT CODE 130361
LAS CODE 158820
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming TRIAC
Output Type Constant Voltage
Min Output Current mA 500
Min Input Voltage V 24
Max Output Voltage in V 24
Max Output Voltage in V 2080
Remote or Built In Independent
IP RATING IP20
How To Program the Current? N/A
Length 184
Width 61
Heigth 32
KGP EQUIVALENT MODEL CV50W24CG-Triac
