CV120W24CG-DALI-NX
  • CV120W24CG-DALI-NX
Attachments
Download
DATASHEET

CV120W24CG-DALI-NX.pdf

Download (1.69M)

CV120W24CG-DALI-NX

158510
Description

158510

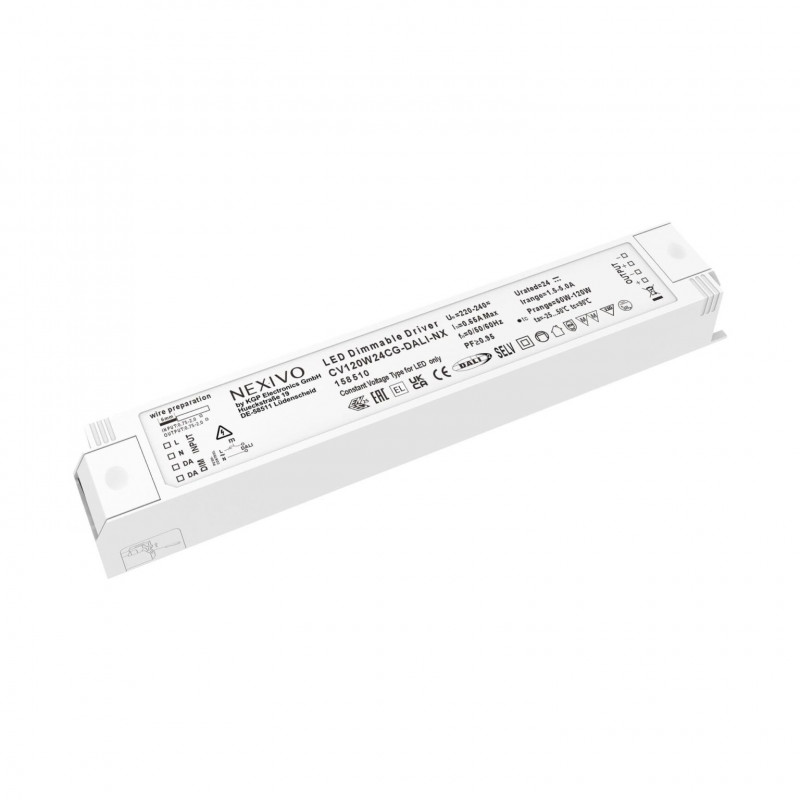

CV120W24CG-DALI-NX - 158510 - NEXIVO by KGP GMBH - Driver LED dimmable - Tension constante - Courant de sortie 1250-5000 mA - Puissance 30-120 W - Tension de sortie 24-24 V - Tension d’entrée 220-240 VAC - PF ≥ 0,95 - THD ≤ 7% - Rendement 92-92% - Isolation SELV - Class II - IP20 - Independent - Dimensions 253 x 42,5 x 31 mm - Durée de vie 50000 h - Garantie 5 ans

Specific References a

LAS CODE 158510
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming DALI
Output Type Constant Voltage
Min Output Current mA 1250
Min Input Voltage V 24
Max Output Voltage in V 24
Max Output Voltage in V 5000
Remote or Built In Independent
IP RATING IP20
How To Program the Current? N/A
Length 253
Width 42.5
Heigth 31
KGP EQUIVALENT MODEL CV120W24CG-DALI
