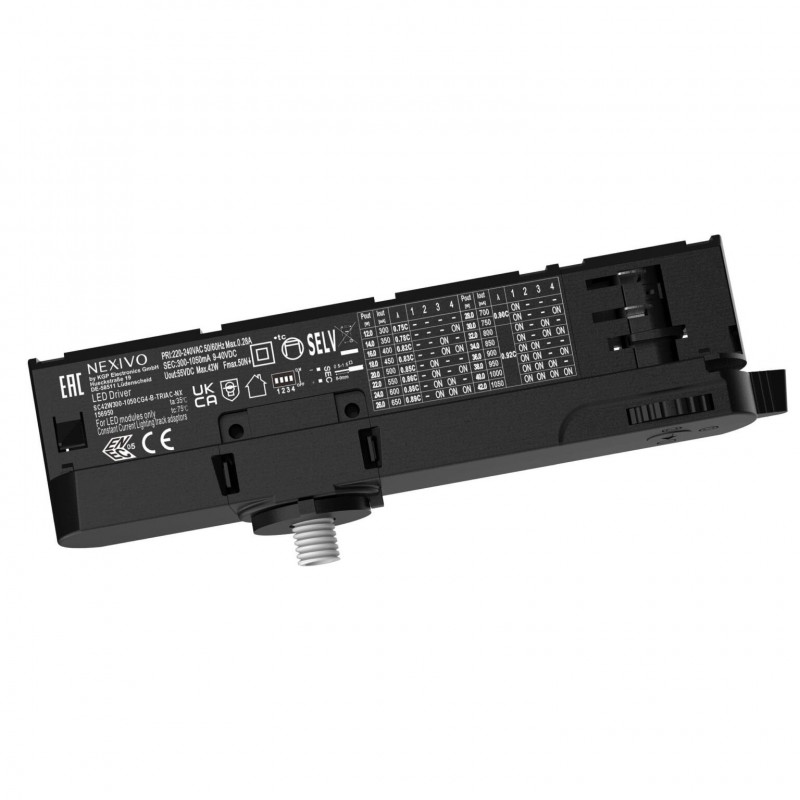

SC42W300-1050CG4-B-TRIAC-NX
  • SC42W300-1050CG4-B-TRIAC-NX
Attachments
Download
DATASHEET

SC42W300-1050CG4-B-TRIAC-NX.pdf

Download (1.11M)

SC42W300-1050CG4-B-TRIAC-NX

156950
Description

156950

SC42W300-1050CG4-B-TRIAC-NX - 156950 - NEXIVO by KGP GMBH - Driver LED dimmable - Courant constant - Courant de sortie 300-1050 mA - Puissance de sortie 2,7-42 W - Tension de sortie 9-40 V - Tension d’entrée 220-240 VAC - PF ≥ 0,92 - THD ≤ 10% - Rendement ≥ 87% - Isolation - Class II - IP20 - Independent - Dimensions 158 x 31 x 45 mm - Durée de vie 50000 h - Garantie 5 ans

Specific References a

KGP EQUIVALENT CODE 151631
LAS CODE 156950
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming TRIAC
Output Type Constant Current
Min Output Current mA 300
Min Input Voltage V 9
Max Output Voltage in V 1050
Max Output Voltage in V 40
Remote or Built In Independent
IP RATING IP20
How To Program the Current? DIP switches
Length 158
Width 31
Heigth 45
KGP EQUIVALENT MODEL SC42W300-1050CG4-B-TRIAC
