SC30W350-700CG4-W-HE-NX
  • SC30W350-700CG4-W-HE-NX
Attachments
Download
DATASHEET

SC30W350-700CG4-W-HE-NX.pdf

Download (1.45M)

SC30W350-700CG4-W-HE-NX

159410
Description

159410

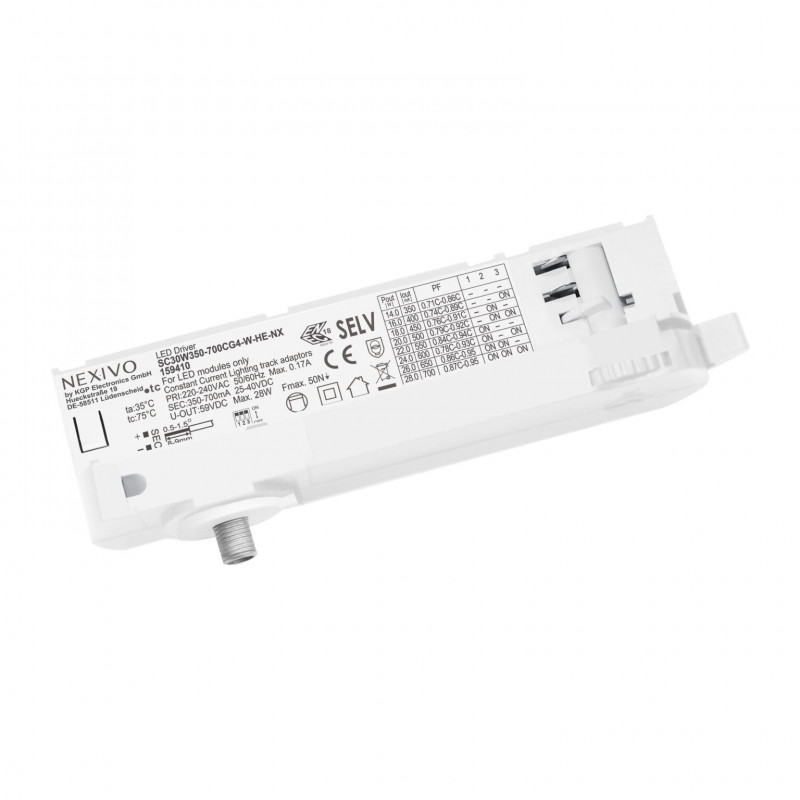

SC30W350-700CG4-W-HE-NX - 159410 - NEXIVO by KGP GMBH - Driver LED - Courant constant - Courant de sortie 350-700 mA - Puissance de sortie 8,8-28 W - Tension de sortie 25-40 V - Tension d’entrée 220-240 VAC - PF ≥ 0,95 - THD ≤ 20% - Rendement ≥ 94% - Isolation - Class II - IP20 - Independent - Dimensions 148,2 x 31,1 x 42,3 mm - Durée de vie 50000 h - Garantie 5 ans

Specific References a

LAS CODE 159410
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming ON OFF
Output Type Constant Current
Min Output Current mA 350
Min Input Voltage V 25
Max Output Voltage in V 700
Max Output Voltage in V 40
Remote or Built In Independent
IP RATING IP20
How To Program the Current? DIP switches
Length 148.2
Width 31.1
Heigth 42.3
KGP EQUIVALENT MODEL SC30W350-700CG4-W-HE
