• New
CV160W24CG-2CH-IOT-NX
  • CV160W24CG-2CH-IOT-NX
Attachments
Download
DATASHEET

CV160W24CG-2CH-IOT-NX.pdf

Download (883.26k)

CV160W24CG-2CH-IOT-NX

157370
Description

157370

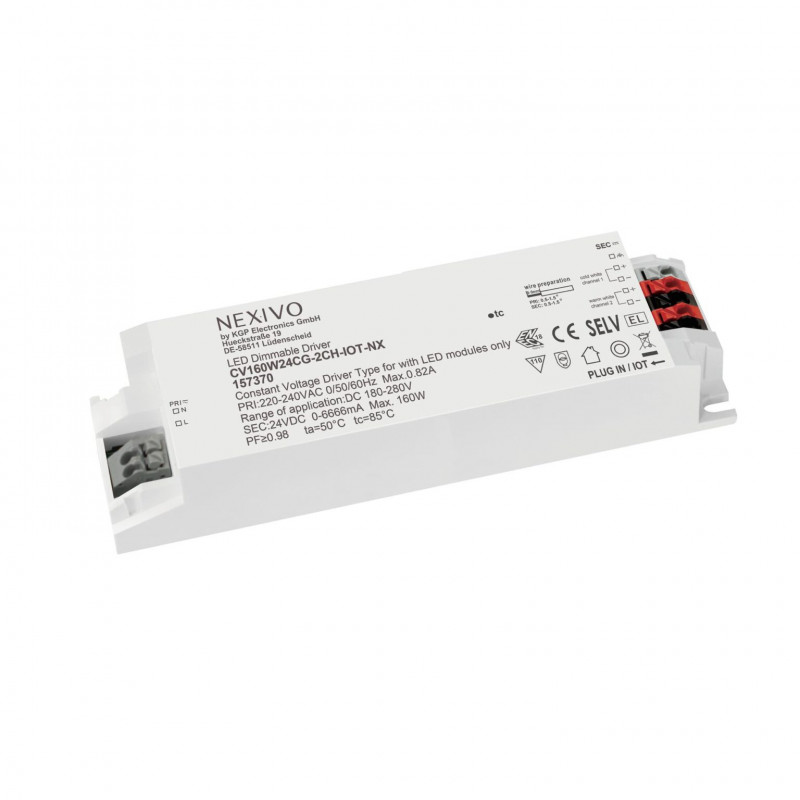

CV160W24CG-2CH-IOT-NX - 157370 - NEXIVO by KGP GMBH - Driver LED dimmable - Tension constante - Courant de sortie 0-6666 mA - Puissance 0-160 W - Tension de sortie 24-24 V - Tension d’entrée 220-240 VAC - PF ≥ 0,98 - THD ≤ 15% - Rendement 89-89% - Isolation - Class II - IP20 - Built-in & Independent - Dimensions 168 x 43 x 22,8 mm - Durée de vie 50000 h - Garantie 5 ans

Specific References a

KGP EQUIVALENT CODE 130061
LAS CODE 157370
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming CASAMBI
Output Type Constant Voltage
Min Output Current mA 0
Min Input Voltage V 24
Max Output Voltage in V 24
Max Output Voltage in V 6666
Remote or Built In Built-in & Independent
IP RATING IP20
How To Program the Current? N/A
Length 168
Width 43
Heigth 22.8
KGP EQUIVALENT MODEL CV160W24CG-2CH-IOT
