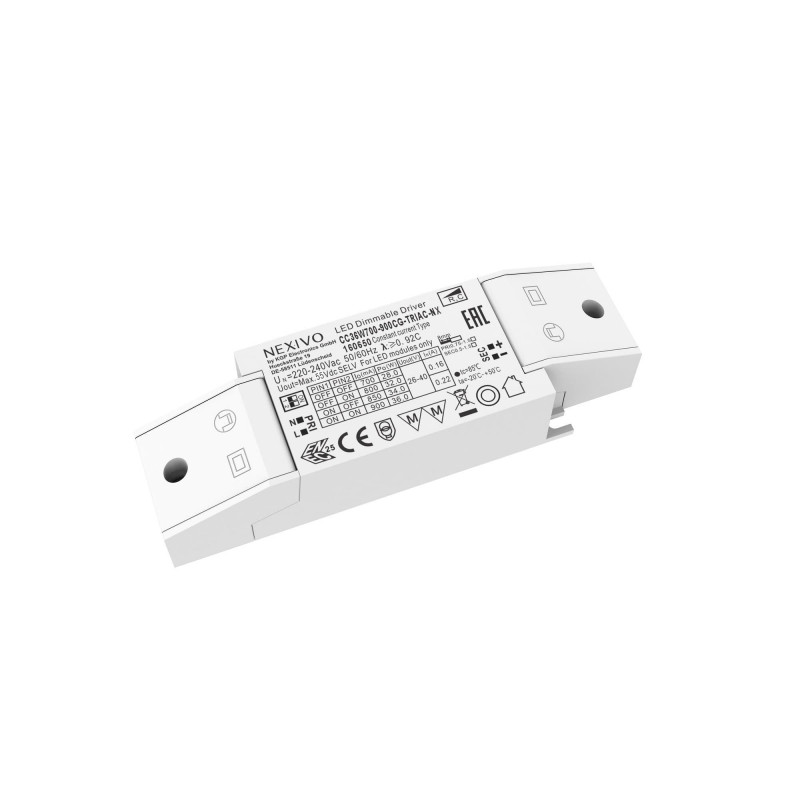

CC36W700-900CG-TRIAC-NX

Reference 160650

Description

Reference 160650

CC36W700-900CG-TRIAC-NX - 160650 - NEXIVO by KGP GMBH - Driver LED dimmable - Courant constant - Courant de sortie 700-900 mA - Puissance jusqu’à 36 W - Tension de sortie 26-40 V - Tension d’entrée 220-240 VAC - PF ≥ 0,92 - THD ≤ 20% - Rendement 85-85% - Isolation - Class II - IP20 - Independent / Built-in - Dimensions 142,8 x 43 x 30 mm - Durée de vie 50000 h - Garantie 5 ans

Specific References a

KGP EQUIVALENT CODE	125571
LAS CODE	160650
MANUFACTURER	NEXIVO by KGP Electronics GmbH
Dimming	TRIAC
Output Type	Constant Current
Min Output Current mA	700
Min Input Voltage V	26
Max Output Voltage in V	900
Max Output Voltage in V	40
Remote or Built In	Independent / Built-in
IP RATING	IP20
How To Program the Current?	DIP switches
Length	142.8
Width	43
Heigth	30
KGP EQUIVALENT MODEL	CC36W700-900CG-TRIAC
