• New
SC42W300-1050CG4-G-CCT-NX
  • SC42W300-1050CG4-G-CCT-NX
Attachments
Download
DATASHEET

SC42W300-1050CG4-G-CCT-NX.pdf

Download (709.79k)

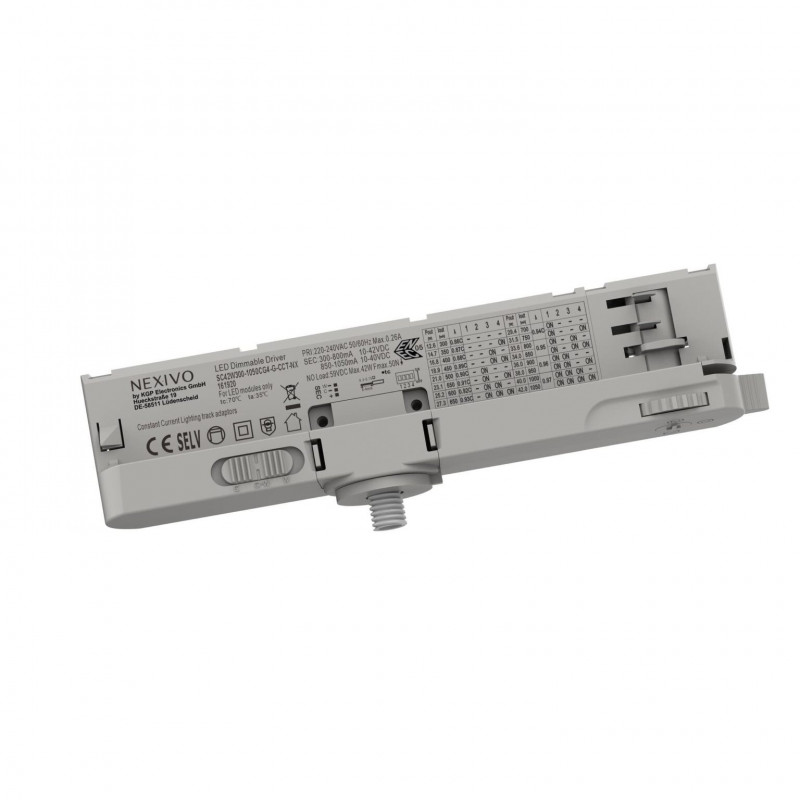

SC42W300-1050CG4-G-CCT-NX

161920
Description

161920

SC42W300-1050CG4-G-CCT-NX - 161920 - NEXIVO by KGP GMBH - Driver LED dimmable - Courant constant - Courant de sortie 300-1050 mA - Puissance de sortie 3-42 W - Tension de sortie 10-42 V - Tension d’entrée 220-240 VAC - PF ≥ 0,95 - THD ≤ 20% - Rendement ≥ 90% - Isolation - Class II - IP20 - Independent - Dimensions 178,5 x 31 x 45 mm - Durée de vie 50000 h - Garantie 5 ans

Specific References a

LAS CODE 161920
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming 0-10V
Output Type Constant Current
Min Output Current mA 300
Min Input Voltage V 10
Max Output Voltage in V 42
Max Output Voltage in V 1050
Remote or Built In Independent
IP RATING IP20
How To Program the Current? DIP switches
Length 178.5
Width 31
Heigth 45
KGP EQUIVALENT MODEL SC42W300-1050CG4-G-CCT
