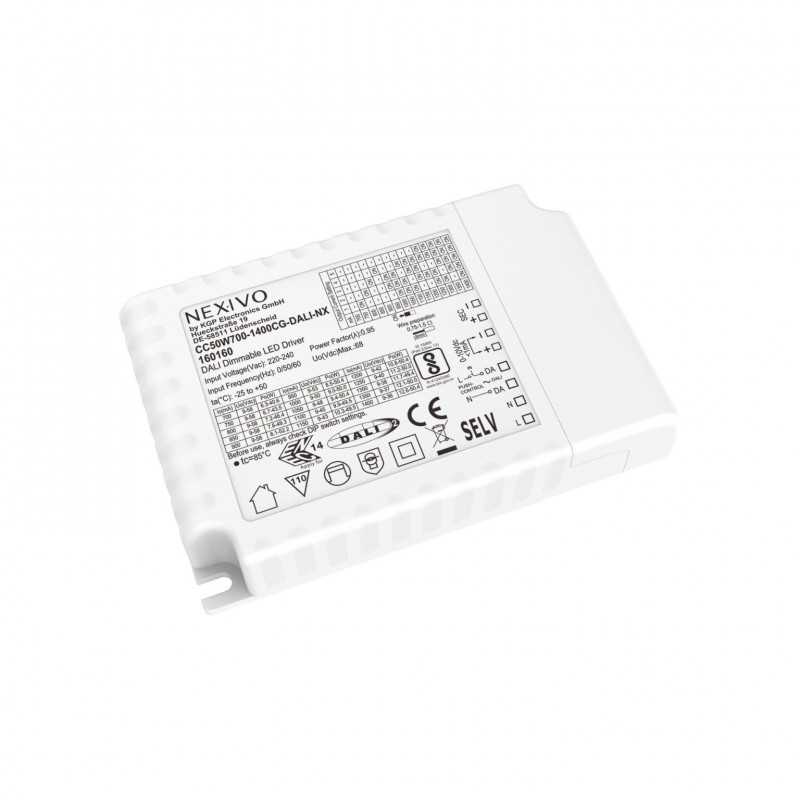

CC50W700-1400CG-DALI-NX
  • CC50W700-1400CG-DALI-NX
Attachments
Download
DATASHEET

CC50W700-1400CG-DALI-NX.pdf

Download (571.83k)

CC50W700-1400CG-DALI-NX

160160
Description

160160

CC50W700-1400CG-DALI-NX - 160160 - NEXIVO by KGP GMBH - Driver LED dimmable - Courant constant - Courant de sortie 700-1400 mA - Puissance 6,3-50,4 W - Tension de sortie 9-58 V - Tension d’entrée 220-240 VAC - PF ≥ 0,95 - THD ≤ 13% - Rendement 86-86% - Isolation - Class II - IP20 - Independent - Dimensions 123 x 79 x 23,8 mm - Durée de vie 50000 h

Specific References a

KGP EQUIVALENT CODE 127211
LAS CODE 160160
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming DALI
Output Type Constant Current
Min Output Current mA 700
Min Input Voltage V 9
Max Output Voltage in V 58
Max Output Voltage in V 1400
Remote or Built In Independent
IP RATING IP20
How To Program the Current? DIP switches
Length 123
Width 79
Heigth 23.8
KGP EQUIVALENT MODEL CC50W700-1400CG-DALI
