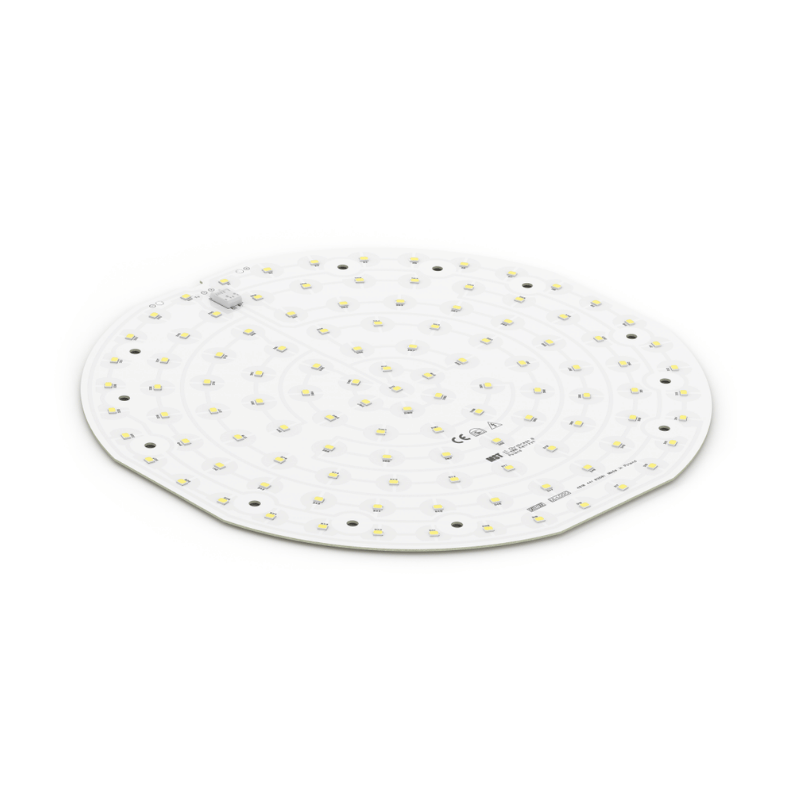

RDLED 255MM FLAT LED MODULES

Reference RdLED 255mm FLAT

Up to 203lm/W - flat round 255mm modules

Description

Reference RdLED 255mm FLAT

MST built-in constant-current round LED modules, 255mm FLAT, with nominal 2500lm / 42V designation.
CRI 80 CJ G4, CN G3 and LG G2 versions at 3000K and 4000K; CRI 90 EH1.1 G3 at 2700K, 3000K and 4000K. Family CCT availability is stated as 2700-6500K.
CJ G4 at 4000K: 340mA, 37V forward voltage, 13W and 2561lm, up to 203lm/W. CN G3 at 4000K: 350mA, 37V, 13W and 2561lm, up to 196lm/W.
LG G2 at 4000K delivers 2600lm at 360mA and 14W; EH1.1 G3 CRI 90 at 4000K delivers 2632lm at 375mA, 39V and 15W, up to 181lm/W.
120° beam angle, 3 SDCM initial colour consistency and RG1 unlimited photobiological safety. Rated performance temperature 65°C; maximum safe case temperature 85°C. CE, ENEC, RoHS and REACH compliant.
Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
Built-in LED modules require suitable luminaire protection; no standalone IP rating.
CJ G4, 3000K / 4000K ordering codes: 1010 147 68046; 1010 147 68146.
CN G3, 3000K / 4000K ordering codes: 1010 147 67846; 1010 147 67946.
LG G2, 3000K / 4000K ordering codes: 1010 147 67646; 1010 147 67746.
EH1.1 G3, 2700K / 3000K ordering codes: 1010 127 95146; 1010 127 65646.
EH1.1 G3, 4000K ordering codes: 1010 147 85946.
