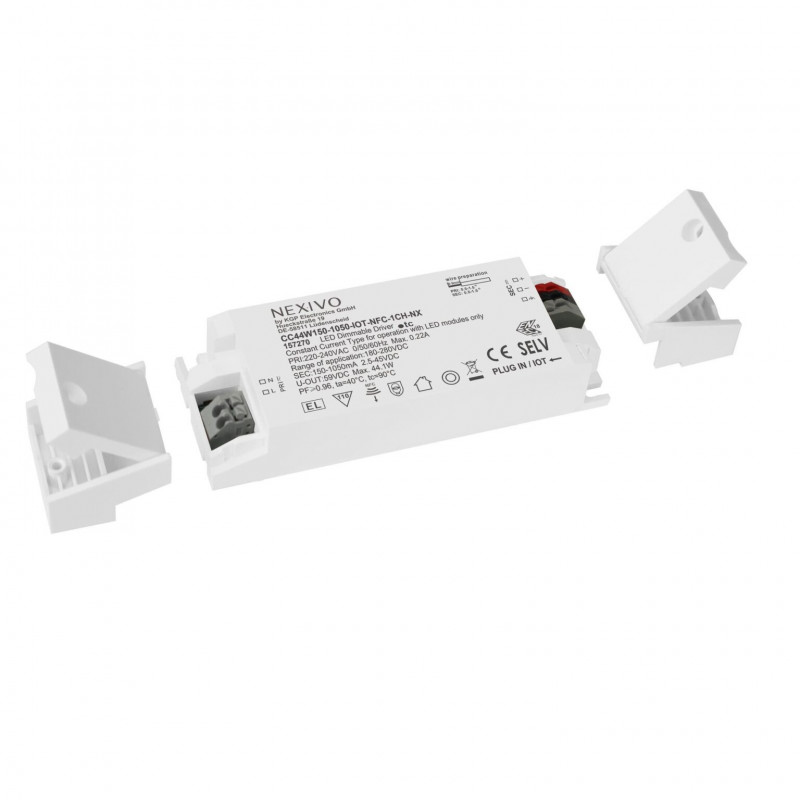

CC44W150-1050-IOT-NFC-1CH-NX

Reference 157270

Description

Reference 157270

CC44W150-1050-IOT-NFC-1CH-NX - 157270 - NEXIVO by KGP GMBH - Driver LED dimmable - Courant constant - Courant de sortie 150-1050 mA - Puissance jusqu’à 44 W - Tension de sortie 2,5-45 V - Tension d’entrée 220-240 VAC - PF ≥ 0,96 - THD ≤ 15% - Rendement 90-90% - Isolation - Class II - IP20 - Built-in / Independent - Dimensions 118 x 43 x 22,8 mm - Durée de vie 100000 h - Garantie 5 ans

Specific References a

KGP EQUIVALENT CODE	126781
LAS CODE	157270
MANUFACTURER	NEXIVO by KGP Electronics GmbH
Dimming	CASAMBI
Output Type	Constant Current
Min Output Current mA	150
Min Input Voltage V	2.5
Max Output Voltage in V	45
Max Output Voltage in V	1050
Remote or Built In	Built-in / Independent
IP RATING	IP20
How To Program the Current?	NFC
Length	118
Width	43
Heigth	22.8
KGP EQUIVALENT MODEL	CC44W150-1050-IOT-NFC-1CH
