CC36W150-900-1-10-NX

Reference 162020

Description

Reference 162020

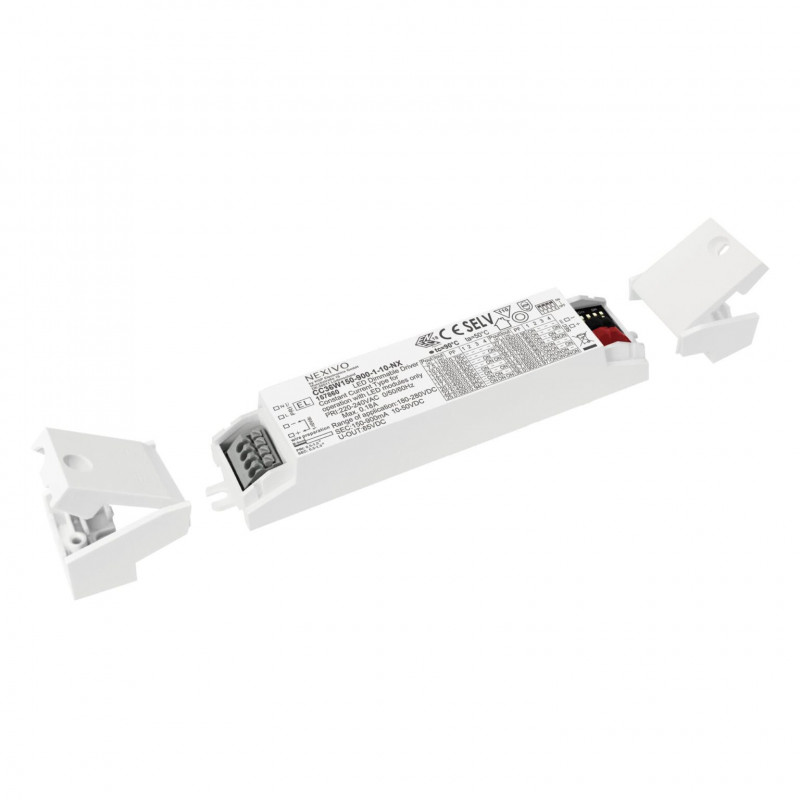

CC36W150-900-1-10-NX - 162020 - NEXIVO by KGP GMBH - Driver LED dimmable - Courant constant - Courant de sortie 150-900 mA - Puissance jusqu’à 36 W - Tension de sortie 10-50 V - Tension d’entrée 220-240 VAC - PF ≥ 0,96 - THD ≤ 9% - Rendement 90-90% - Isolation - Class II - IP20 - Built-in / Independent - Dimensions 128 x 30 x 21 mm - Durée de vie 100000 h - Garantie 5 ans

Specific References a

KGP EQUIVALENT CODE	125371
LAS CODE	162020
MANUFACTURER	NEXIVO by KGP Electronics GmbH
Dimming	ON OFF
Output Type	Constant Current
Min Output Current mA	150
Min Input Voltage V	10
Max Output Voltage in V	50
Max Output Voltage in V	900
Remote or Built In	Built-in / Independent
IP RATING	IP20
How To Program the Current?	DIP switches
Length	128
Width	30
Heigth	21
KGP EQUIVALENT MODEL	CC36W150-900-1-10
