FLEX SHEET
flexsheet
24V back lighting solutions
Description
flexsheet

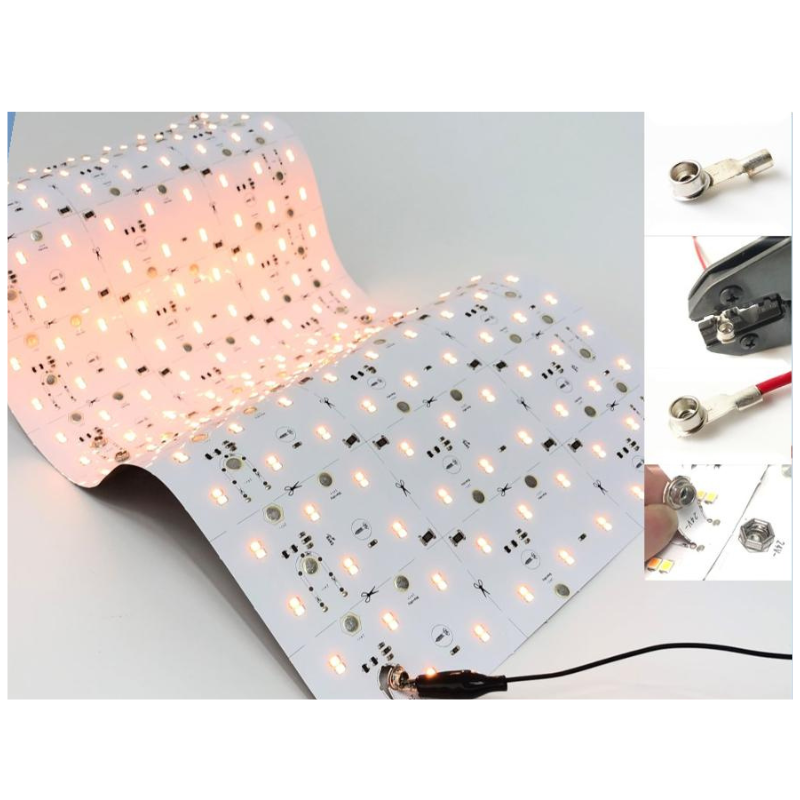

- Flex Sheet is a 24V LED backlighting tile solution for uniform illuminated surfaces, signage and architectural light boxes.
- Available as mono white, dim-to-warm and dynamic white versions.
- DC24V input with flexible tile format for easy integration and cutting.
- LED density from 180 to 360 LEDs per tile for mono and dim-to-warm versions; dynamic white version uses 2 × 200 LEDs per tile.
- Power range from 5.0W to 20.0W per tile for standard mono/dim-to-warm versions, and up to 50.0W per tile for dynamic white.
- Luminous flux up to 2250 lm per tile for standard versions and up to 4200 lm per tile for dynamic white.
- Standard tile size 500 × 250 mm with 83 × 50 mm cut unit; dynamic white cut unit 24 × 24 mm with 2 LED segments.
- Mono white versions available in 2700K, 3000K, 4000K and 6500K, with additional 1800K, 2100K, 2400K and 5000K options.
- Dim-to-warm version changes automatically from 3000K to 1800K by PWM dimming using a 1-channel 2-pin cable (+24V, -24V).
- High colour rendering options: Ra≥90 for mono white and dynamic white, Ra≥95 for dim-to-warm.
- Mono White — 180 LEDs/tile, constant voltage or constant current options, 5W to 20W per tile, max 20 pcs to 5 pcs per single feed depending on power.
- Dim to Warm — 360 LEDs/tile, PWM dimming, 7.5W to 30W per tile, up to 2250 lm at 3000K 100%.
- Dynamic White — 2 × 200 LEDs/tile, 2 × 5W to 2 × 50W power options, max luminous flux up to 4200 lm, 2700K + 6500K mix.
-
