C‑28‑S‑XP‑MF

C‑28‑S‑XP‑MF

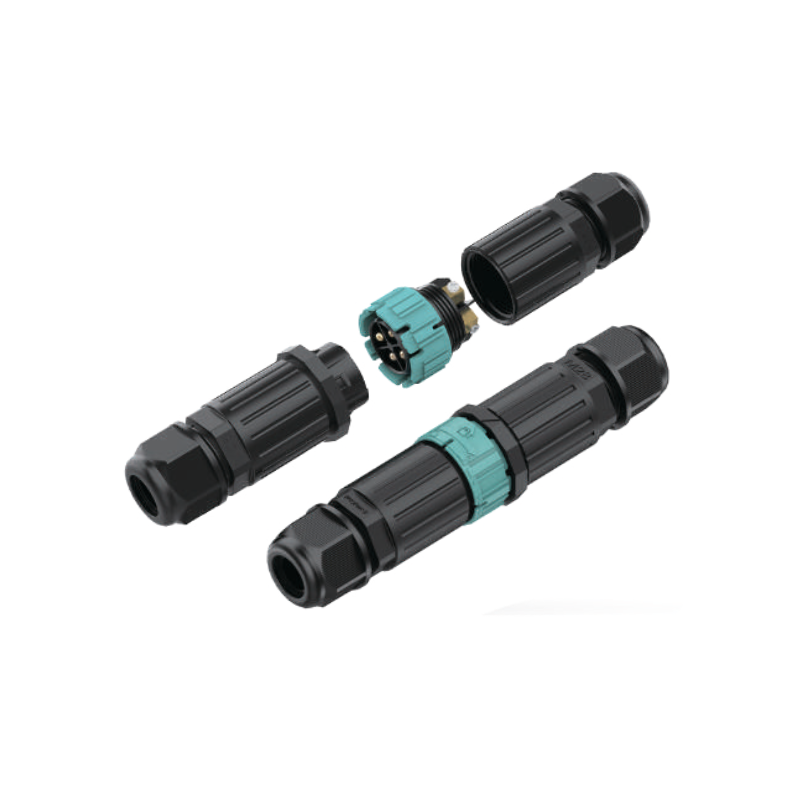

IP68 screwless male female connector 2/3/4/5/6pins
Description

C‑28‑S‑XP‑MF

  • ● (Male & Female) IP68 screw‑terminal waterproof connector.
  • ● Available in 2‑pin, 3‑pin, 4‑pin, 5‑pin and 6‑pin versions.
  • ● PA66 UL94 V‑0 flame‑retardant housing.
  • ● Silicone rubber seal for high waterproof protection.
  • ● Cable diameter options: 5–9mm, 9–12mm and 10–14mm.
  • ● Rated 50A for 2–4 pins and 20A for 5–6 pins.
  • ● Wire section up to 6mm² depending on pin count.
  • ● Self‑locking secure connection system.
  • ● 1,500 mating cycles.
  • ● Operating temperature: –40°C to +105°C.
  • ● 3‑year warranty.
