C‑25‑R‑XP‑MF
C‑25‑R‑XP‑MF

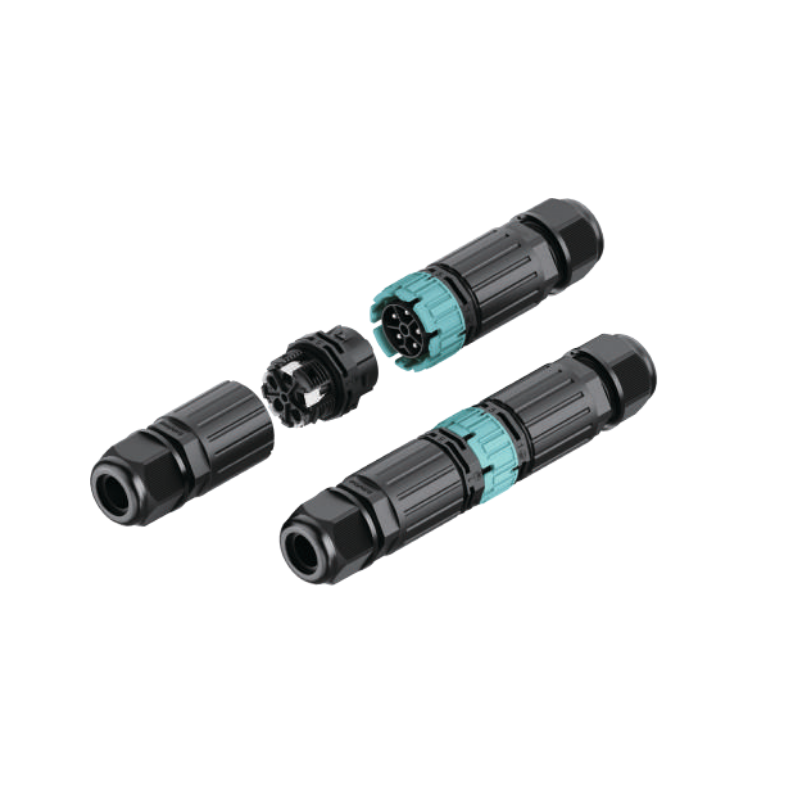

IP68 screwless male female connector 4/5pins
Description
C‑25‑R‑XP‑MF
- ● (Male & Female) IP68 screwless fast‑wiring waterproof connector.
- ● Available in 4‑pin and 5‑pin versions.
- ● PA66 flame‑retardant housing (V‑0).
- ● Silicone rubber seal for enhanced waterproof protection.
- ● Cable diameter options: 5–9mm, 9–12mm and 10–14mm.
- ● Rated 16A / 450V.
- ● Wire section: 0.5–2.5mm².
- ● Self‑locking screw‑free connection design.
- ● Stripping length: 10–13mm.
- ● 1,500 mating cycles.
- ● Operating temperature: –40°C to +105°C.
- ● 3‑year warranty.
-
