C‑15‑S‑XP‑MF

C‑15‑S‑XP‑MF

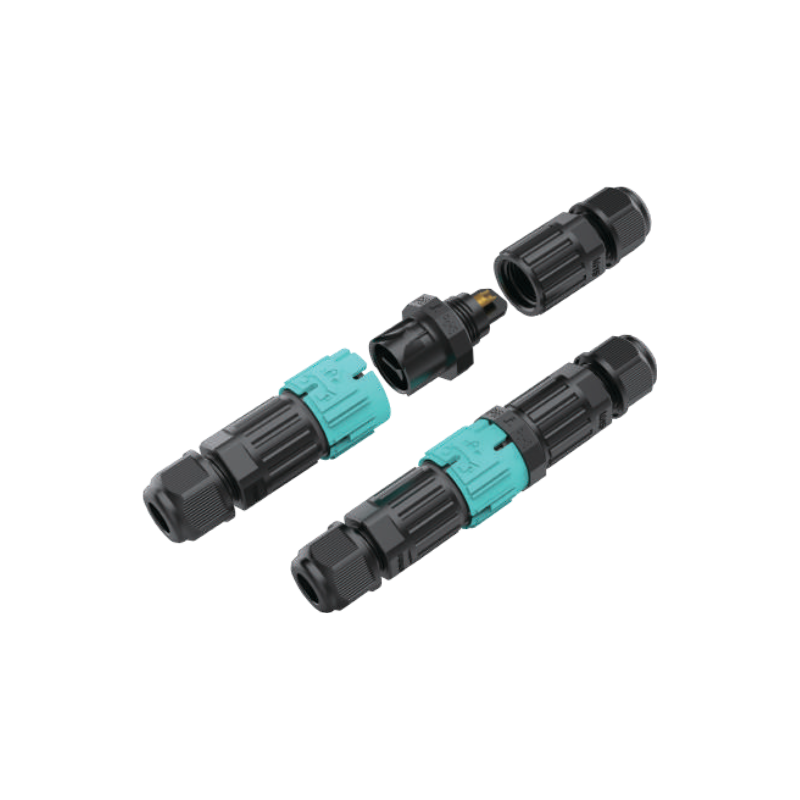

IP68 soldering male female connector 2/3pins
Description

C‑15‑S‑XP‑MF

  • ● (Male & Female) IP68 self‑locking solder‑wiring connector.
  • ● Available in 2‑pin, 3‑pin and 4‑pin versions.
  • ● PA66 UL94 V‑0 flame‑retardant housing.
  • ● Silicone rubber sealing for waterproof protection.
  • ● Cable diameter options: 2.5–4.5mm and 3.5–7mm.
  • ● Rated 10A / 450V.
  • ● Wire section: 0.5–1.5mm².
  • ● Self‑locking quick‑secure connection mechanism.
  • ● 1,500 mating cycles.
  • ● Operating temperature: –40°C to +105°C.
  • ● 3‑year warranty.
