OUTDOOR LED MODULES 6X6 & 8X8
Outdoor LED modules 6x6 & 8x8
Up to 16153lm - 6x6 and 8x8 outdoor modules
Description

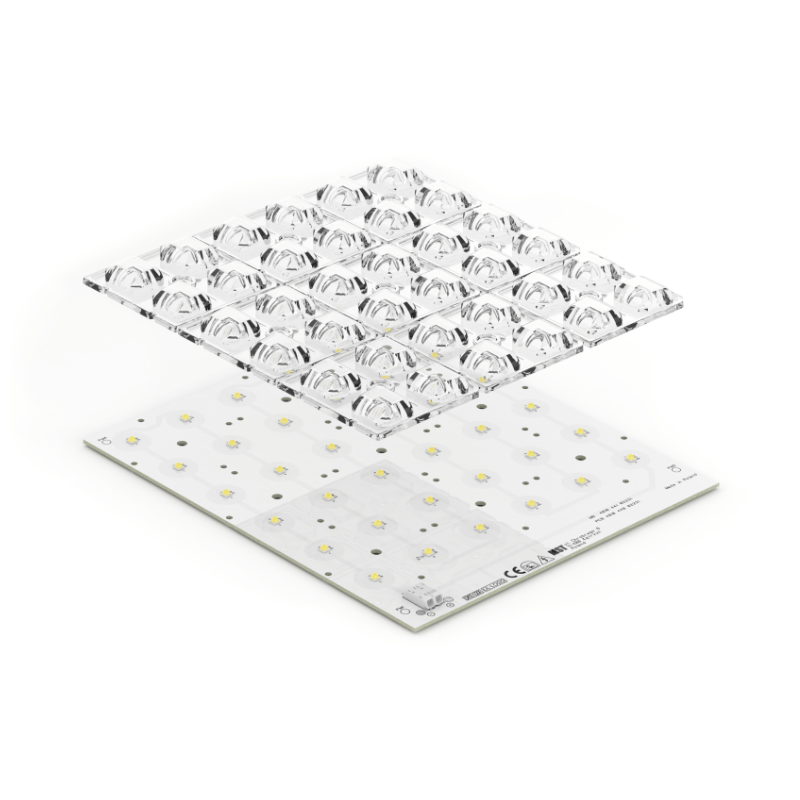

Outdoor LED modules 6x6 & 8x8
- MST built-in constant-current rectangular outdoor LED modules, compatible with standard 2x2 optics including LEDiL STRADA-2x2.
- CRI 70 Opt G2 family: RecLED 173x151mm 6x6, nominal 8700lm, and RecLED 224x202mm 8x8, nominal 15200lm; 3000K and 4000K versions.
- 6x6 at 500mA: 100V forward voltage, 50W and 8574lm at 3000K or 9086lm at 4000K.
- 8x8 at 500mA: 177V forward voltage, 88W and 15243lm at 3000K or 16153lm at 4000K. Efficacy up to 183lm/W; current range 100-1500mA.
- 120° beam angle, 5 SDCM and RG2 (RG1 at distances greater than 0.5m). Rated performance temperature 75°C; maximum safe case temperature 95°C.
- Series wiring: maximum 3 modules for 6x6 and 2 for 8x8. CE, ENEC, ENEC+, RoHS and REACH compliant.
- Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
- Built-in LED modules require suitable luminaire protection; no standalone IP rating.
- 6x6, 3000K / 4000K ordering codes: 1010 117 91746; 1010 117 91846.
- 8x8, 3000K / 4000K ordering codes: 1010 117 92046; 1010 117 92146.
-
