PCB ULLA

Reference PCBULLA

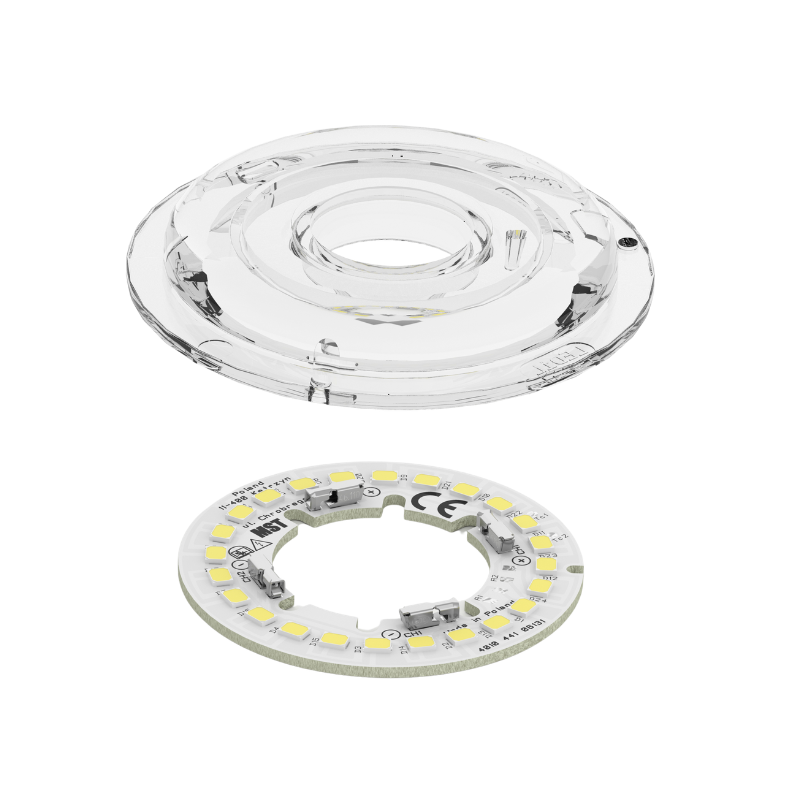

LED Board for LEDiL Ulla Optic

Description

Reference PCBULLA

Long lifetime.
Built-in constant current LED module.
Re-openable push-in terminals for easy wiring.
Approvals: CE (also RoHS and REACH compliant).
Temperature limits: Tp 45°C, Tp rated 65°C, Tc max 85°C; humidity 5–85% (non-condensing).
Electrical/optical data: operating voltage 60 Vdc, beam angle 120°, SDCM 3, photobiological safety RG1 unlimited.
Available CCT range 2700K to 6500K and CRI 80 or 90.
No IP rating (for integration into luminaires).

RingLED 29.2–54.2mm 2×450lm 827-865 36V ULLA-UP CJ G4 — Ordering code: 1010 147 71846 (If nom 75 mA, 430–475 lm, Vf 32 V, P 2.4 W, 177–195 lm/W, energy class C).
RingLED 29.2–54.2mm 900lm 830 36V ULLA-UP CJ G4 — Ordering code: 1010 147 71646 (If nom 150 mA, 918 lm, Vf 32 V, P 4.9 W, 189 lm/W, energy class C).
RingLED 29.2–54.2mm 900lm 840 36V ULLA-UP CJ G4 — Ordering code: 1010 147 71746 (If nom 150 mA, 955 lm, Vf 32 V, P 4.9 W, 196 lm/W, energy class B).
Optical and electrical tolerances: ±10%.
