RDLED 315MM EMG LED MODULES

Reference RdLED 315mm EMG

Integrated emergency circuit - up to 199lm/W

Description

Reference RdLED 315mm EMG

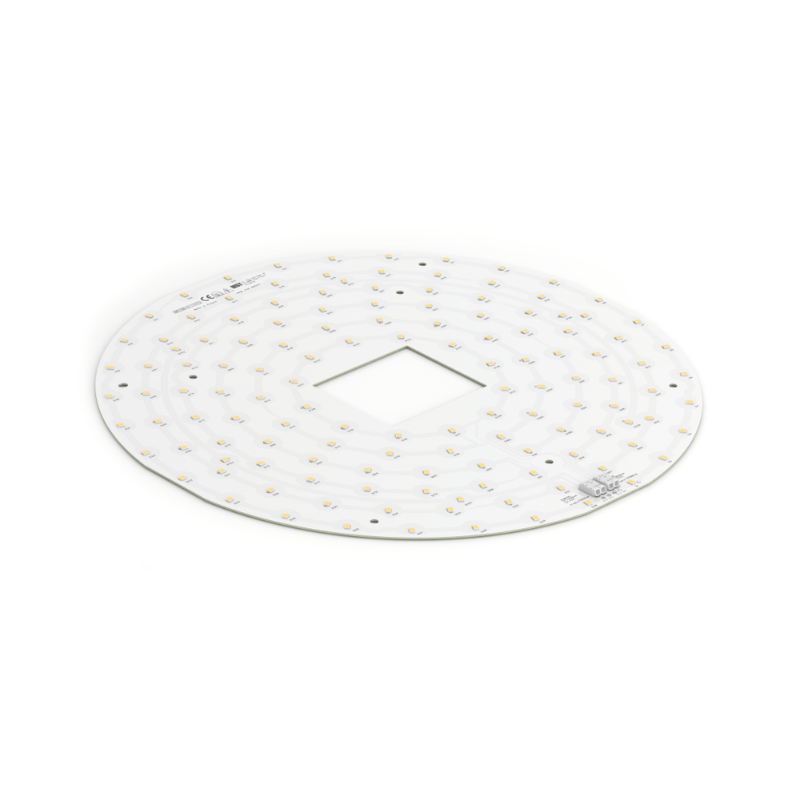

MST built-in constant-current round LED modules, 315mm, nominal 4000lm/24V designation, with a dedicated emergency-lighting circuit.
CRI 80 CJ G4, CN G3 and LG G2 at 3000K and 4000K, each listed in EMG and EMG SSW variants. CRI 90 EH1.1 G3 EMG versions are listed at 2700K, 3000K and 4000K.
CJ G4 4000K main circuit: 960mA, 22V forward voltage, 21W and 4102lm, up to 199lm/W. Its separate emergency circuit delivers 223lm at 420mA, 2.7V and 1.1W.
CN G3 4000K main circuit delivers 4127lm at 995mA and 22W; LG G2 delivers 4193lm at 1040mA and 23W.
EH1.1 G3 CRI 90 4000K main circuit delivers 4185lm at 1070mA, 23V and 24W; emergency circuit delivers 218lm at 450mA, 2.9V and 1.3W.
The connection diagram separates MAIN and EMERG terminals; use the appropriate LED driver and emergency power supply. SSW is retained as the manufacturer's variant designation.
120° beam angle, 3 SDCM initial colour consistency and RG1 unlimited photobiological safety. Rated performance temperature 65°C; maximum safe case temperature 85°C. CE, ENEC, RoHS and REACH compliant.
Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
No standalone IP rating; suitable protection must be provided by the luminaire.
CJ G4: 3000K EMG / EMG SSW, then 4000K EMG / EMG SSW ordering codes: 1010 137 60146; 1010 137 60246; 1010 137 46946; 1010 137 60346.
CN G3: 3000K EMG / EMG SSW, then 4000K EMG / EMG SSW ordering codes: 1010 147 68846; 1010 147 36446; 1010 147 68946; 1010 147 36546.
LG G2: 3000K EMG / EMG SSW, then 4000K EMG / EMG SSW ordering codes: 1010 147 68646; 1010 147 69446; 1010 147 68746; 1010 147 69546.
EH1.1 G3 EMG: 2700K / 3000K / 4000K ordering codes: 1010 117 42546; 1010 117 42646; 1010 117 42746.
