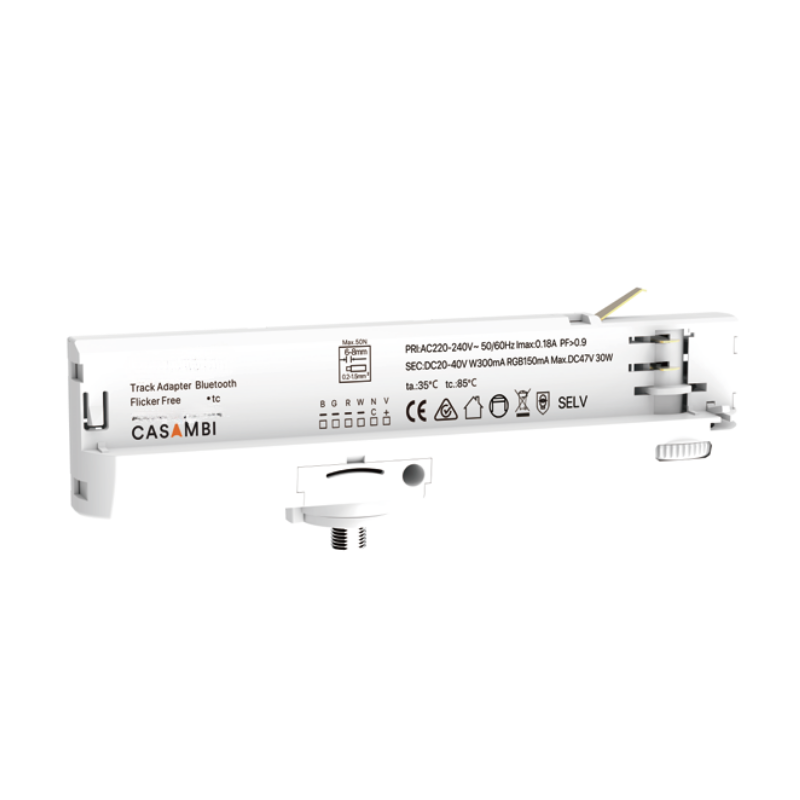

In Track Casambi RGBW

Reference ITCAS30WRGBW

30W 4 Channels

Description

Reference ITCAS30WRGBW

30W Casambi RGBCW dimmable in-track constant current LED driver with built-in 3-phase 4-wire track adaptor.
Designed for RGBCW luminaires with smooth flicker-free dimming and 100% output when no dimming signal is present.
Output current: CW 300mA and RGB 150mA; output voltage 8–40Vdc, maximum <47Vdc.
Maximum output power 30W; dimming type RGBCW; output channel configuration 1 CH / 2 CH.
Nominal input voltage 220–240Vac, 50/60Hz; nominal line current 0.18A max.
Power factor corrected: PF > 0.9 at full load @ 230V; no-load power loss <0.5W.
Compatible with many phase track brands including Nordic, Powergear, Global, Eutrac, Staff, Erco, OneTrack, Hoffmeister, Concord, Unipro and Zumtobel.
Protections: over-temperature, overload, short-circuit and no-load protection; automatic reversible protection functions.
Temperature protection according to EN 61347-2-13 C5e; ambient temperature ta -20°C to +35°C; max case temperature tc 85°C.
Surge protection: 1000V L-N; galvanic isolation 3.75kVrms, SELV-equivalent primary/secondary isolation.
Safety standards: IEC 61347-1:2015, IEC 61347-1:2015/AMD1:2017, IEC 61347-2-13:2014 and IEC 61347-2-13:2014/AMD1:2016.
EMC: EN IEC 55015:2019/A11:2020, EN 61547:2009, EN IEC 61000-3-2:2019/A1:2021 and EN 61000-3-3:2013/A2:2021.
Casing colors available: black, white or grey; nominal lifetime up to 50,000 hours or 5-year guarantee under normal conditions.
Dimensions: 189 × 32 × 46 mm; package size 59 × 25 × 21 cm; 50 pcs/box.

Model: ITCAS30WRGBW — 30W Casambi RGBCW in-track constant current LED driver.
Phase selection positions: 0 Off, 1 Phase 1, 2 Phase 2, 3 Phase 3.
Wiring: input and output cable cross-section 0.5–2.5mm² solid or flexible; wire preparation length 7–8 mm.
Installation notes: keep all connections as short as possible for good EMI behaviour; max output wire length 20 cm; secondary switching is not permitted.
Maximum allowed complete luminaire weight: 5 kg (50 N) for horizontal track system mounting.
