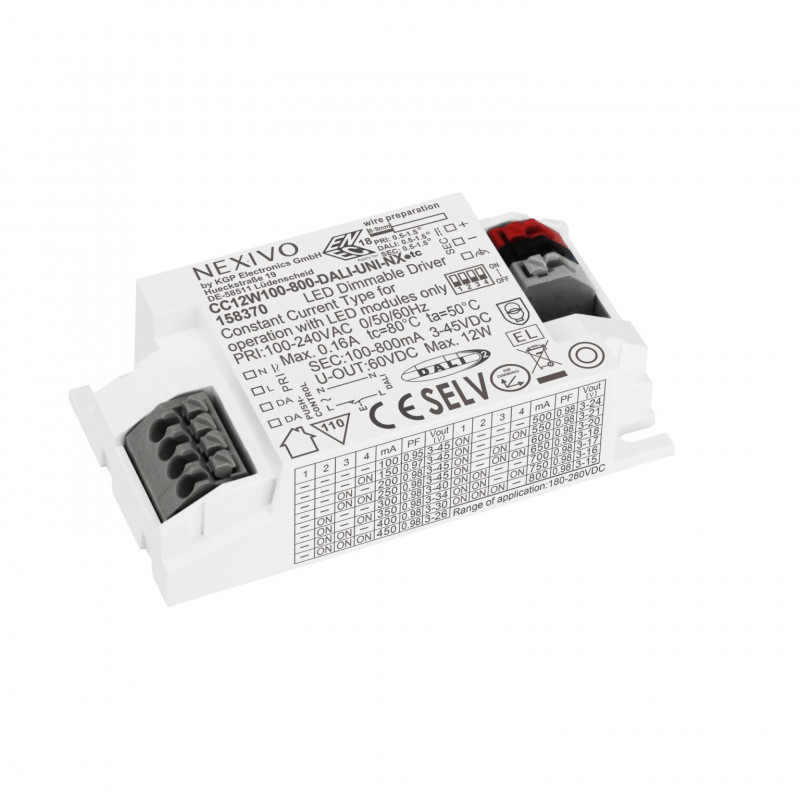

CC12W100-800-DALI-UNI-NX
  • CC12W100-800-DALI-UNI-NX
Attachments
Download
DATASHEET

CC12W100-800-DALI-UNI-NX.pdf

Download (912.39k)

CC12W100-800-DALI-UNI-NX

158370
Description

158370

CC12W100-800-DALI-UNI-NX - 158370 - NEXIVO by KGP GMBH - Driver LED dimmable - Courant constant - Courant de sortie 100-800 mA - Puissance jusqu’à 12 W - Tension de sortie 3-45 V - Tension d’entrée 100-240 VAC - PF ≥ 0,98 - THD ≤ 9% - Rendement ≥ 83,4% - Isolation - Class II - IP20 - Built-in / Independent - Dimensions 75 x 40 x 21 mm - Durée de vie 100000 h - Garantie 5 ans

Specific References a

LAS CODE 158370
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming DALI
Output Type Constant Current
Min Output Current mA 100
Min Input Voltage V 3
Max Output Voltage in V 45
Max Output Voltage in V 800
Remote or Built In Built-in / Independent
IP RATING IP20
How To Program the Current? DIP switches
Length 75
Width 40
Heigth 21
KGP EQUIVALENT MODEL CC12W100-800-DALI-UNI
