RV25W24-NX
  • RV25W24-NX
Attachments
Download
DATASHEET

RV25W24-NX.pdf

Download (498.25k)

RV25W24-NX

158710
Description

158710

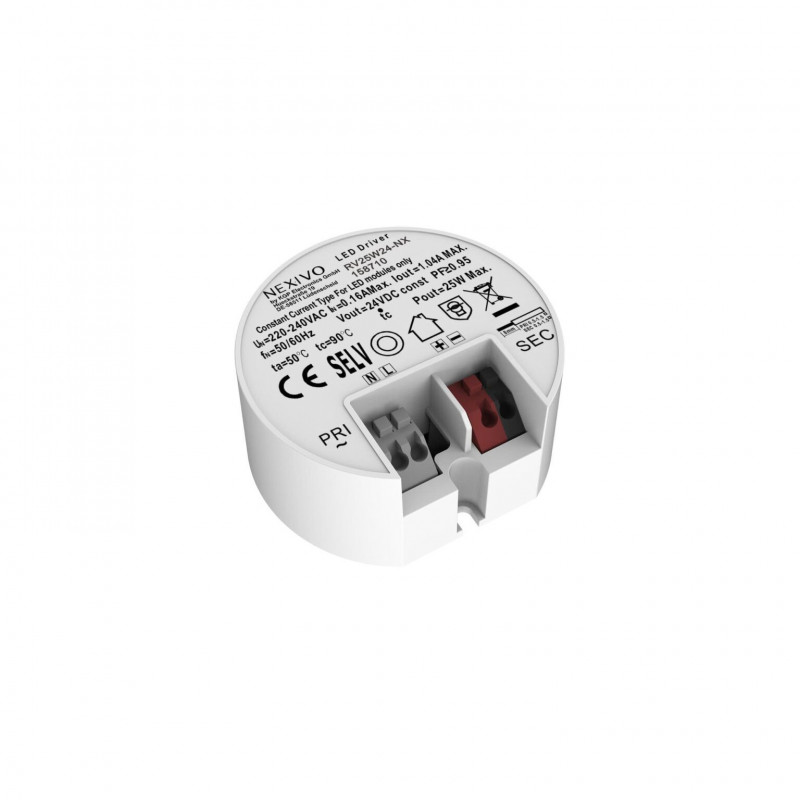

RV25W24-NX - 158710 - NEXIVO by KGP GMBH - Driver LED - Tension constante - Courant de sortie 50-1040 mA - Puissance 1,2-25 W - Tension de sortie 24-24 V - Tension d’entrée 220-240 VAC - PF ≥ 0,95 - THD ≤ 15% - Rendement 86-86% - Class II - IP20 - Built-in & Independent - Dimensions 55 x 55 x 25 mm - Durée de vie 50000 h - Garantie 5 ans

Specific References a

KGP EQUIVALENT CODE 144641
LAS CODE 158710
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming ON OFF
Output Type Constant Voltage
Min Output Current mA 50
Min Input Voltage V 24
Max Output Voltage in V 24
Max Output Voltage in V 1040
Remote or Built In Built-in & Independent
IP RATING IP20
How To Program the Current? N/A
Length 55
Width 55
Heigth 25
KGP EQUIVALENT MODEL RV25W24
