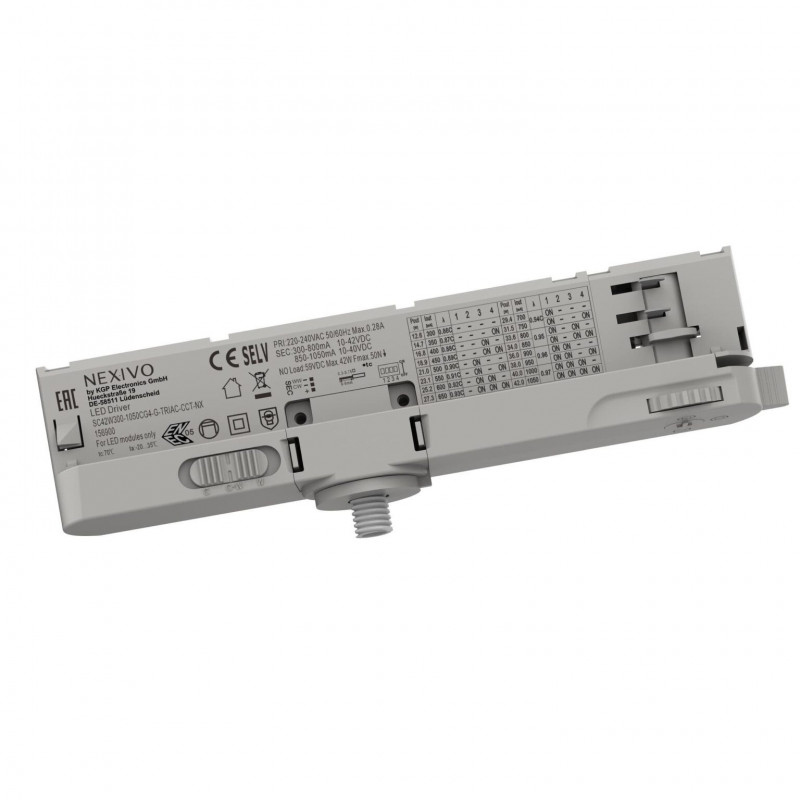

SC42W300-1050CG4-G-TRIAC-CCT-NX

SC42W300-1050CG4-G-TRIAC-CCT-NX

Share

SC42W300-1050CG4-G-TRIAC-CCT-NX - 156900 - NEXIVO by KGP GMBH - Driver LED dimmable - Courant constant - Courant de sortie 300-1050 mA - Puissance de sortie 2,8-44 W - Tension de sortie 10-40 V - Tension d’entrée 220-240 VAC - PF ≥ 0,93 - THD ≤ 15% - Rendement ≥ 86% - Isolation - Class II - IP20 - Independent - Dimensions 178,5 x 31 x 42,1 mm - Durée de vie 50000 h - Garantie 5 ans

  • Reference
    156900
  • Condition
    New

  • KGP EQUIVALENT CODE
    151631
  • LAS CODE
    156900
  • MANUFACTURER
    NEXIVO by KGP Electronics GmbH
  • Dimming
    TRIAC
  • Output Type
    Constant Current
  • Min Output Current mA
    300
  • Min Input Voltage V
    10
  • Max Output Voltage in V
    1050
    40
  • Remote or Built In
    Independent
  • IP RATING
    IP20
  • How To Program the Current?
    DIP switches
  • Length
    178.5
  • Width
    31
  • Heigth
    42.1
  • KGP EQUIVALENT MODEL
    SC42W300-1050CG4-G-TRIAC-CCT

DATASHEET

SC42W300-1050CG4-G-TRIAC-CCT-NX.pdf

Download (919.17KB)
