SC42W300-1050CG4-W-CCT-NX

SC42W300-1050CG4-W-CCT-NX

Share

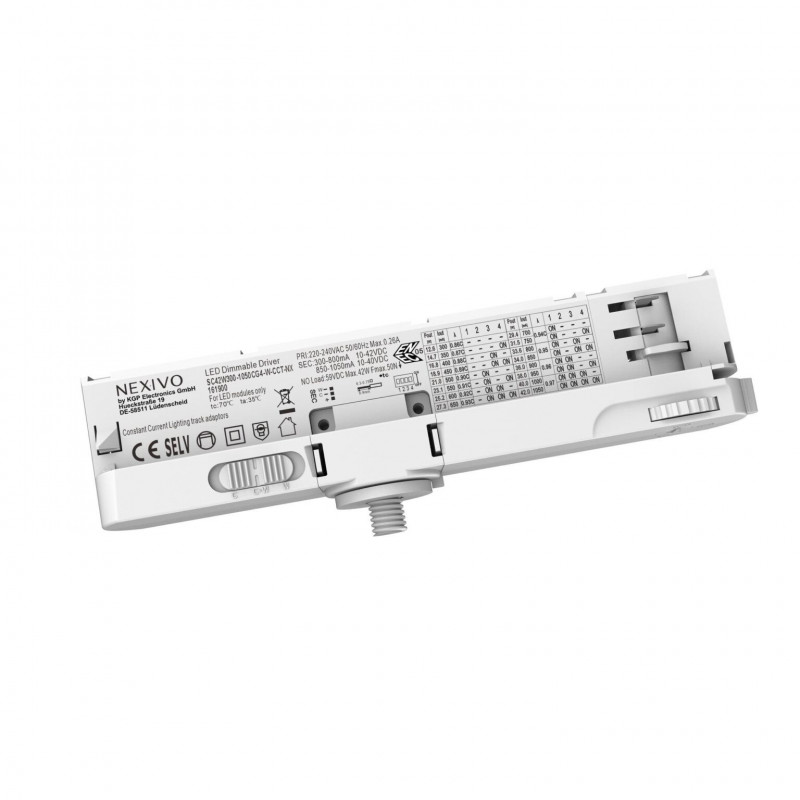

SC42W300-1050CG4-W-CCT-NX - 161900 - NEXIVO by KGP GMBH - Driver LED dimmable - Courant constant - Courant de sortie 300-1050 mA - Puissance de sortie 3-42 W - Tension de sortie 10-42 V - Tension d’entrée 220-240 VAC - PF ≥ 0,95 - THD ≤ 20% - Rendement ≥ 90% - Isolation - Class II - IP20 - Independent - Dimensions 178,5 x 31 x 45 mm - Durée de vie 50000 h - Garantie 5 ans

  • Reference
    161900
  • Condition
    New

  • LAS CODE
    161900
  • MANUFACTURER
    NEXIVO by KGP Electronics GmbH
  • Dimming
    0-10V
  • Output Type
    Constant Current
  • Min Output Current mA
    300
  • Min Input Voltage V
    10
  • Max Output Voltage in V
    1050
    42
  • Remote or Built In
    Independent
  • IP RATING
    IP20
  • How To Program the Current?
    DIP switches
  • Length
    178.5
  • Width
    31
  • Heigth
    45
  • KGP EQUIVALENT MODEL
    SC42W300-1050CG4-W-CCT

DATASHEET

SC42W300-1050CG4-W-CCT-NX.pdf

Download (709.79KB)
