LV100W24CG-DALI-NX
  • LV100W24CG-DALI-NX
Attachments
Download
DATASHEET

LV100W24CG-DALI-NX.pdf

Download (2.21M)

LV100W24CG-DALI-NX

158610
Description

158610

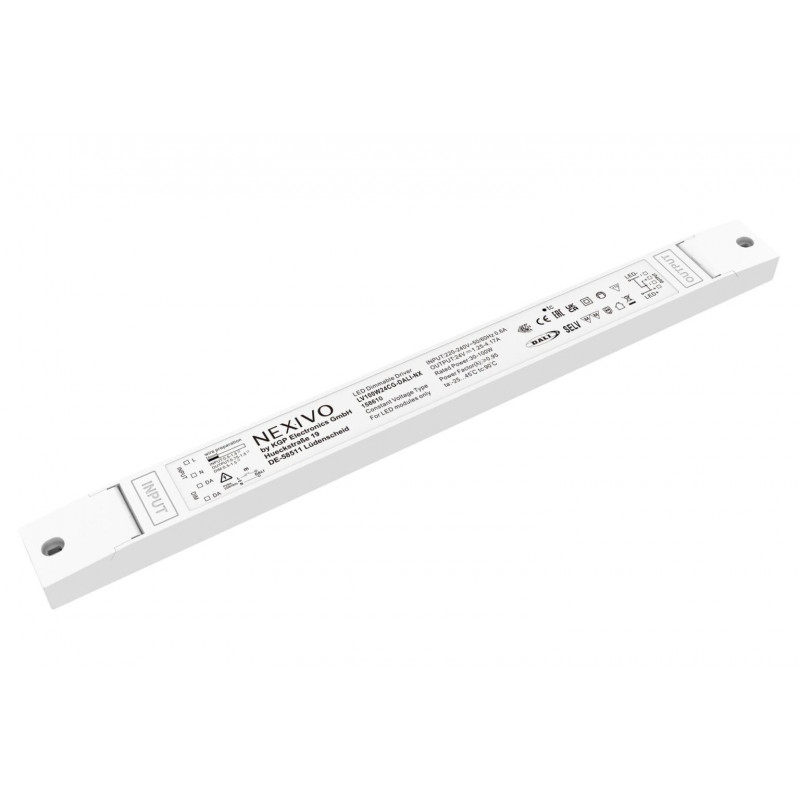

LV100W24CG-DALI-NX - 158610 - NEXIVO by KGP GMBH - Dimmable Driver LED - Tension constante - Courant de sortie 1250-4170 mA - Puissance 30-100 W - Tension de sortie 24-24 V - Tension d’entrée 220-240 VAC - PF ≥ 0,95 - THD ≤ 7% - Rendement 92-92% - Isolation SELV - Class II - IP20 - Independent - Dimensions 350 x 30 x 18 mm - Durée de vie 60000 h - Garantie 5 ans

Specific References a

KGP EQUIVALENT CODE 139581
LAS CODE 158610
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming DALI
Output Type Constant Voltage
Min Output Current mA 1250
Min Input Voltage V 24
Max Output Voltage in V 24
Max Output Voltage in V 4170
Remote or Built In Independent
IP RATING IP20
How To Program the Current? N/A
Length 350
Width 30
Heigth 18
KGP EQUIVALENT MODEL LV100W24CG-DALI
