OUTDOOR LED MODULES 5050

Reference Outdoor LED modules 5050

Up to 193lm/W - 5050 outdoor modules

Description

Reference Outdoor LED modules 5050

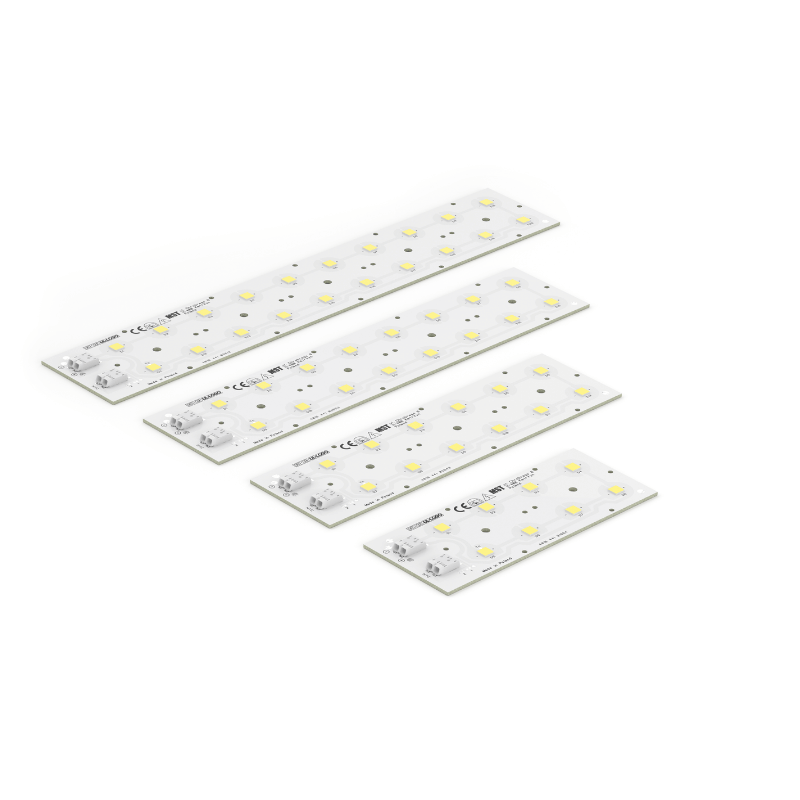

MST built-in constant-current rectangular LED modules for outdoor luminaires, compatible with standard 2x2 optics including LEDiL STRADA-2x2-5050.
Optimum G2 CRI 70 family: 122x50mm 2x4, 173x50mm 2x6, 224x50mm 2x8 and 274x50mm 2x10. Nominal designations range from 1900lm to 4800lm.
3000K and 4000K standard versions; NTC variants also include 2700K, and 2200K for the 122, 173 and 224mm formats. Other CCT and CRI on request.
At 460mA nominal current, the 4000K versions deliver 1923, 2885, 3846 or 4808lm, at 10, 15, 20 or 25W respectively; efficacy up to 193lm/W. Forward voltages: 22, 33, 43 and 54V.
NTC versions use a 10kΩ Murata NCP18XH103J03RB thermistor. Operating current range: 80-1600mA.
120° beam angle, 5 SDCM and RG2 (RG1 at distances greater than 0.5m). Rated performance temperature 75°C; maximum safe case temperature 95°C.
Maximum series quantities: 16 modules for 122mm, 10 for 173mm, 8 for 224mm and 6 for 274mm.
CE, RoHS and REACH compliant. ENEC and ENEC+ do not apply to the 722 / 2200K versions.
Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
Built-in LED modules require suitable luminaire protection; no standalone IP rating.
122x50mm Opt G2, 3000K / 4000K ordering codes: 1010 117 71046; 1010 117 71146.
122x50mm NTC, 2200K / 2700K ordering codes: 1010 137 53746; 1010 137 09746.
122x50mm NTC, 3000K / 4000K ordering codes: 1010 127 86646; 1010 127 75146.
173x50mm Opt G2, 3000K / 4000K ordering codes: 1010 117 71246; 1010 117 71346.
173x50mm NTC, 2200K / 2700K ordering codes: 1010 137 53846; 1010 137 09846.
173x50mm NTC, 3000K / 4000K ordering codes: 1010 127 86746; 1010 127 75246.
224x50mm Opt G2, 3000K / 4000K ordering codes: 1010 117 71446; 1010 117 71546.
224x50mm NTC, 2200K / 2700K ordering codes: 1010 137 53946; 1010 137 09946.
224x50mm NTC, 3000K / 4000K ordering codes: 1010 127 86846; 1010 127 75346.
274x50mm Opt G2, 3000K / 4000K ordering codes: 1010 117 75946; 1010 117 76046.
274x50mm NTC, 2700K ordering codes: 1010 137 10046.
274x50mm NTC, 3000K / 4000K ordering codes: 1010 127 86946; 1010 127 75446.
