CC15W100-700-UT-DALI-NFC-NX
  • CC15W100-700-UT-DALI-NFC-NX
  • CC15W100-700-UT-DALI-NFC-NX
  • CC15W100-700-UT-DALI-NFC-NX
Attachments
Download
DATASHEET

CC15W100-700-UT-DALI-NFC-NX.pdf

Download (1.02M)

CC15W100-700-UT-DALI-NFC-NX

157790
Description

157790

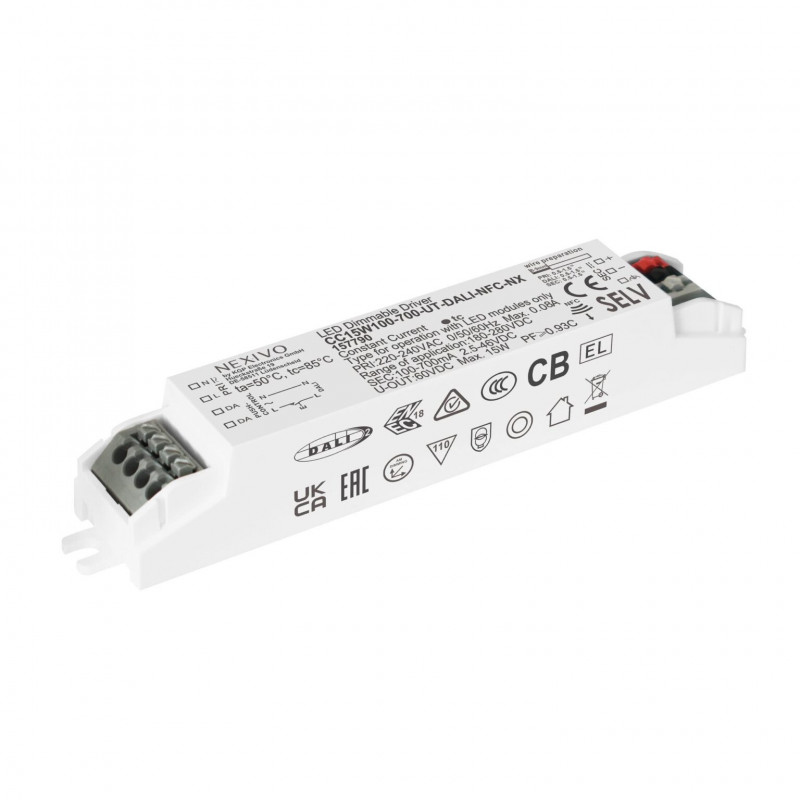

CC15W100-700-UT-DALI-NFC-NX - 157790 - NEXIVO by KGP GMBH - Driver LED dimmable - Courant constant - Courant de sortie 100-700 mA - Puissance jusqu’à 15 W - Tension de sortie 2,5-46 V - Tension d’entrée 220-240 VAC - PF ≥ 0,93 - THD ≤ 16% - Rendement ≥ 84% - Isolation - Class II - IP20 - Built-in / Independent - Dimensions 113 x 22 x 20 mm - Durée de vie 100000 h - Garantie 5 ans

Specific References a

LAS CODE 157790
MANUFACTURER NEXIVO by KGP Electronics GmbH
Dimming DALI
Output Type Constant Current
Min Output Current mA 100
Min Input Voltage V 2.5
Max Output Voltage in V 700
Max Output Voltage in V 46
Remote or Built In Built-in / Independent
IP RATING IP20
How To Program the Current? NFC
Length 113
Width 22
Heigth 20
KGP EQUIVALENT MODEL CC15W100-700-UT-DALI-NFC
