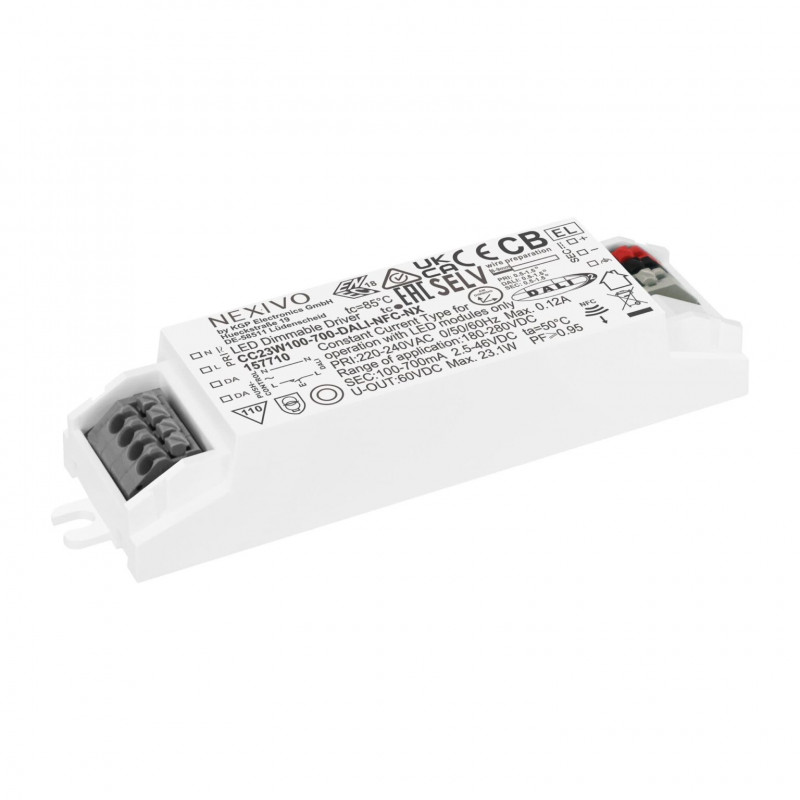

CC23W100-700-DALI-NFC-NX

Reference 157710

Description

Reference 157710

CC23W100-700-DALI-NFC-NX - 157710 - NEXIVO by KGP GMBH - Driver LED dimmable - Courant constant - Courant de sortie 100-700 mA - Puissance jusqu’à 23 W - Tension de sortie 2,5-46 V - Tension d’entrée 220-240 VAC - PF ≥ 0,95 - THD ≤ 12% - Rendement ≥ 88% - Isolation - Class II - IP20 - Built-in / Independent - Dimensions 103,4 x 30 x 21 mm - Durée de vie 100000 h - Garantie 5 ans

Specific References a

KGP EQUIVALENT CODE	124081
LAS CODE	157710
MANUFACTURER	NEXIVO by KGP Electronics GmbH
Dimming	DALI
Output Type	Constant Current
Min Output Current mA	100
Min Input Voltage V	2.5
Max Output Voltage in V	700
Max Output Voltage in V	46
Remote or Built In	Built-in / Independent
IP RATING	IP20
How To Program the Current?	NFC
Length	103.4
Width	30
Heigth	21
KGP EQUIVALENT MODEL	CC23W100-700-DALI-NFC
