PX-25-V-XP

PX-25-V-XP

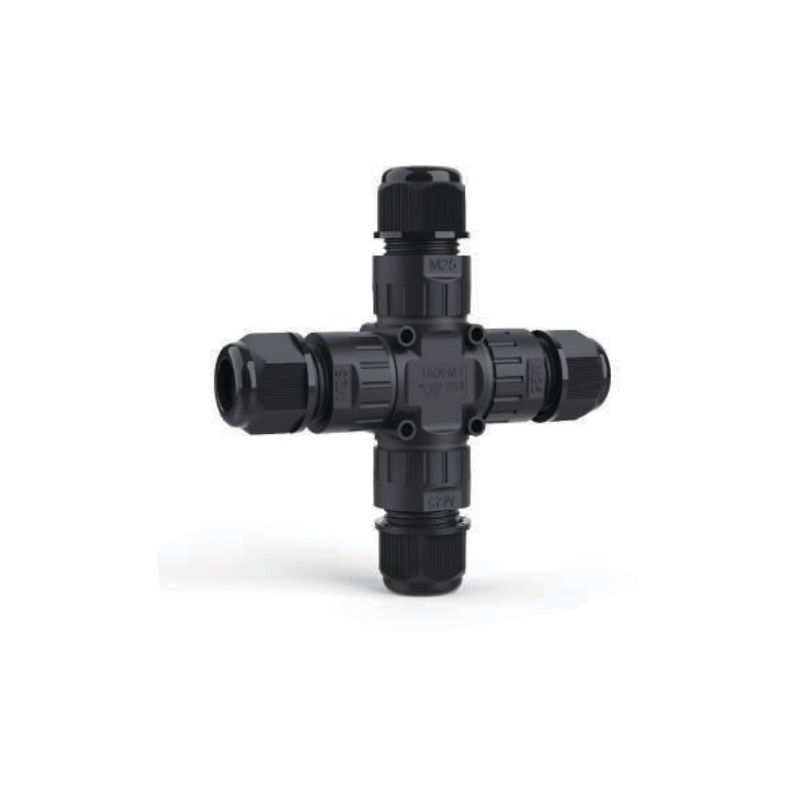

IP68 screw connector 2/3pins
Description

PX-25-V-XP

  • ● IP68 screw connector for high‑performance waterproof electrical wiring
  • ● Available in 2, 3, 4 and 5‑pin versions
  • ● Screw‑terminal system for secure tightening
  • ● PA66 UL94 V‑0 housing with silicone rubber waterproof seal
  • ● Rated 41A / 450V
  • ● Wire section up to 6mm²
  • ● Compatible with cable diameters 5–9mm, 9–12mm and 10–14mm
  • ● Stripping length 8–10mm
  • ● Operating temperature −40°C to +105°C
  • ● Suitable for industrial power feeds, LED installations and outdoor connections
