RDLED 190MM EMG LED MODULES

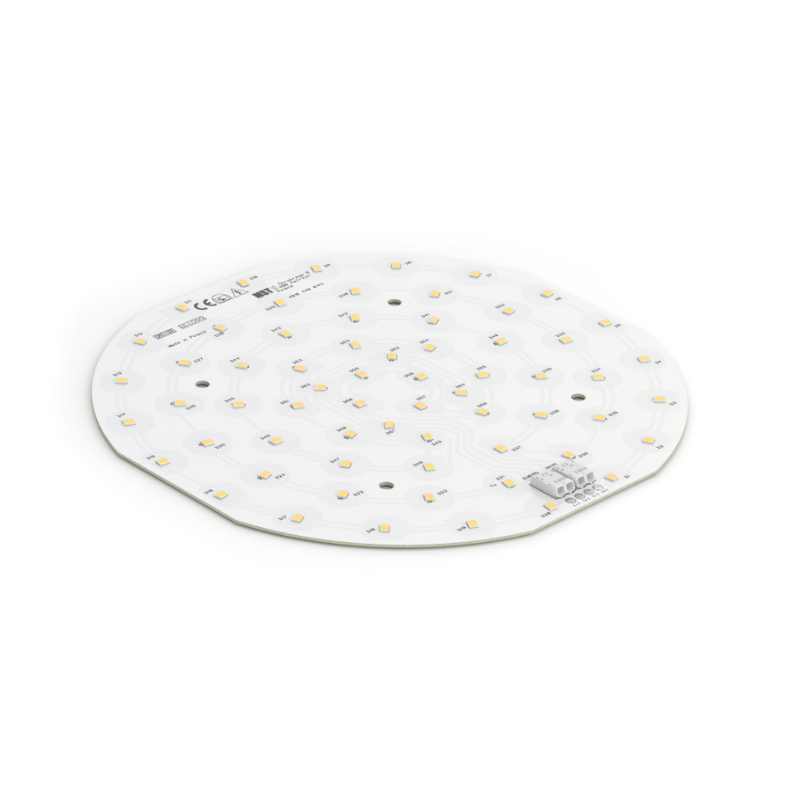

RdLED 190mm EMG
Up to 202lm/W - round modules with emergency circuit
Description

RdLED 190mm EMG

  • MST built-in constant-current round LED modules, 190mm, nominal 1500lm/36V designation, with a dedicated emergency-lighting circuit.
  • Listed CRI 80 variants: CJ G4, CN G3 and LG G2 at 3000K or 4000K. The family description states CCT availability from 2700K to 6500K and CRI 80/90.
  • CJ G4 4000K main circuit: 240mA, 32V forward voltage, 7.7W and 1546lm, up to 202lm/W. Emergency circuit: 300mA, 2.7V, 0.8W and 159lm.
  • CN G3 4000K main circuit delivers 1563lm at 250mA and 8W; its emergency circuit delivers 164lm at 320mA and 0.9W.
  • LG G2 4000K main circuit delivers 1536lm at 250mA and 8.2W; its emergency circuit delivers 157lm at 320mA and 0.9W. Follow the separate MAIN and EMERG connections and use an appropriate emergency power supply.
  • 120° beam angle, 3 SDCM initial colour consistency and RG1 unlimited photobiological safety. Rated performance temperature 65°C; maximum safe case temperature 85°C. CE, ENEC, RoHS and REACH compliant.
  • Re-workable push-in terminals accept 0.2-0.75mm² solid or flexible wires, with an 8-9mm strip length.
  • No standalone IP rating; suitable protection must be provided by the luminaire.
  • CJ G4, 3000K / 4000K ordering codes: 1010 147 65346; 1010 147 65446.
  • CN G3, 3000K / 4000K ordering codes: 1010 147 65146; 1010 147 65246.
  • LG G2, 3000K / 4000K ordering codes: 1010 147 64946; 1010 147 65046.
