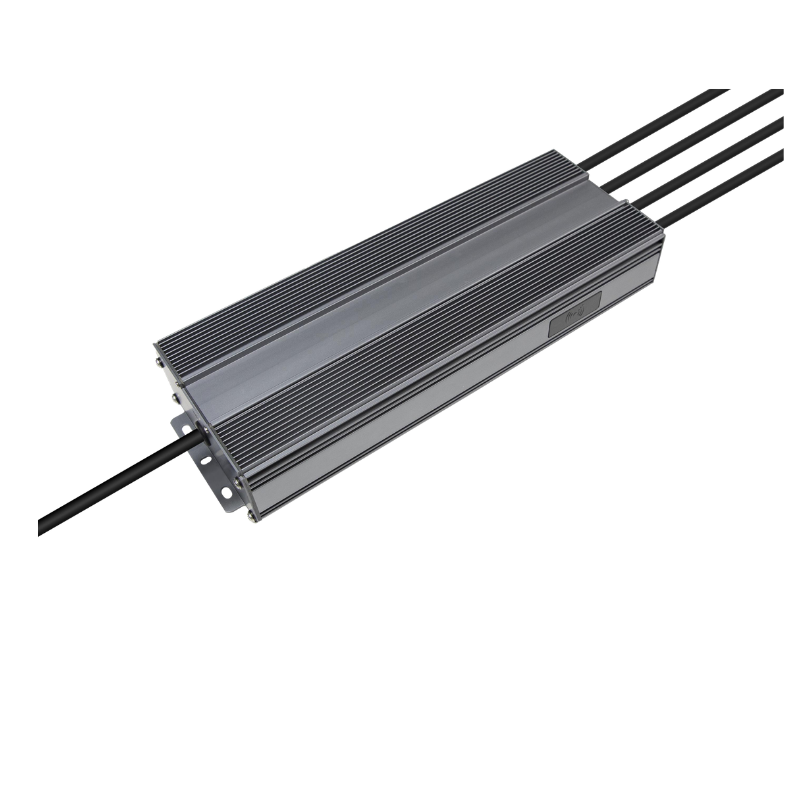

Driver DMX RDM CV
LASDMXA8001000
800W ou 1000W 12/24/36/48V
Description
LASDMXA8001000
- DMX/RDM dimmable LED driver with constant voltage output for high-power LED strips and lighting applications.
- LAS-DMXA-T family available in 12V, 24V, 36V and 48Vdc, with 800W or 1000W output depending on model.
- Universal 120–277Vac input, 50/60Hz, with built-in active PFC and power factor PF > 0.95.
- High efficiency up to 96%, flicker-free operation, minimum load 10%.
- DMX dimming with 0.1–100% range and 0.1% dimming depth.
- Adjustable dimming curve, multiple frequency options, lamp temperature detection and driver parameters adjustable by app.
- Protections: short circuit / overload / over temperature with automatic recovery after fault removal.
- IP66 full aluminum housing for dry, damp and wet locations; cooling by free air convection.
- Working temperature -40°C to +50°C; humidity 20–95%RH non-condensing.
- Certifications and compliance: UL / SELV / RoHS / Reach; EN61347-1, EN61347-2-13, UL8750, CAN/CSA-C22.2 No.250.13.
- EMC: EN61547, EN61000-4-2/3/4/5/6/11, EN55015, EN61000-3-2/3, FCC Part 15 Subpart B.
- Dimensions: 332.6 × 114 × 53.3 mm; net weight 3.59 kg; 5-year warranty.
- Model LAS-12800-DMXA-T — 12Vdc output ±4%, rated current 66.67A, 800W @ 120–277Vac.
- Model LAS-241K0-DMXA-T — 24Vdc output ±2%, rated current 41.67A, 800W @ 120Vac or 1000W @ 230/277Vac.
- Model LAS-361K0-DMXA-T — 36Vdc output ±2%, rated current 27.78A, 1000W @ 230/277Vac.
- Model LAS-481K0-DMXA-T — 48Vdc output ±2%, rated current 20.83A, 1000W @ 230/277Vac.
- Voltage regulation ≤0.5%, load regulation ±1%, leakage current <0.5mA.
- Typical inrush current: 39.1A @120Vac, 60.6A @230Vac, 87.9A @277Vac.
-
