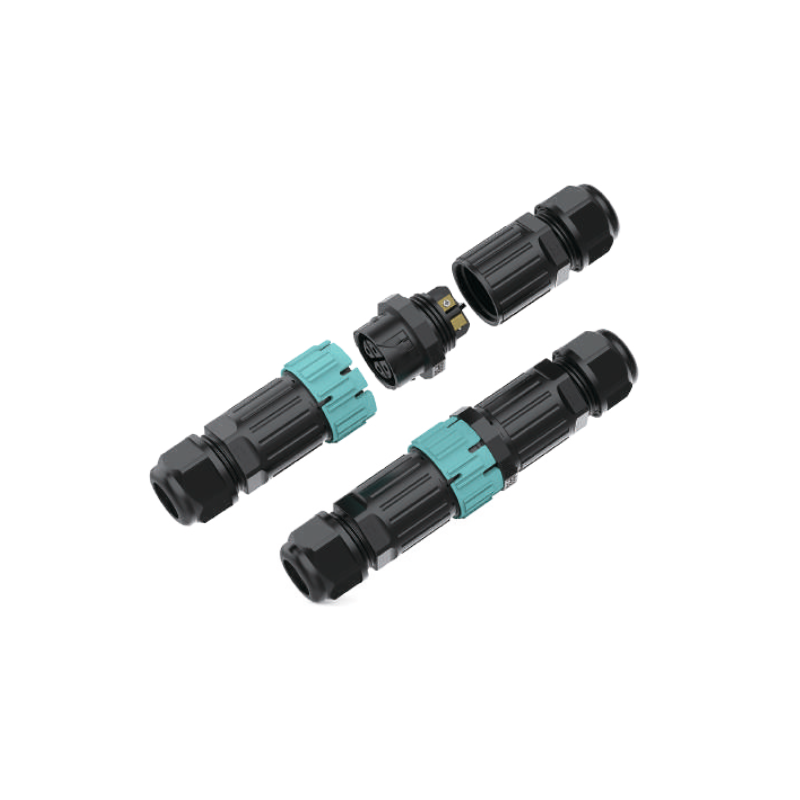

C‑23‑S-XP‑MF

C‑23‑S-XP‑MF
IP68 soldering male female connector 2/3/4/5pins
Description

C‑23‑S-XP‑MF

  • ● (Male & Female) IP68 waterproof connector.
  • ● Solder‑wiring versions for 2‑pin, 3‑pin, 4‑pin and 5‑pin models.
  • ● Screw‑terminal versions for 2‑pin and 3‑pin models.
  • ● PA66 UL94 V‑0 flame‑retardant housing.
  • ● Silicone rubber waterproof sealing.
  • ● Cable diameter options: 5–9mm and 9–12mm.
  • ● Rated 30A for 2–3 pins and 16A for 4–5 pins.
  • ● Wire section: 0.5–4mm² (2–3 pins) and 0.5–2.5mm² (4–5 pins).
  • ● Self‑locking secure connection system.
  • ● Stripping length: 6–8mm.
  • ● 1,500 mating cycles.
  • ● Operating temperature: –40°C to +105°C.
  • ● 3‑year warranty.
