RDLED 1/2 740MM LED MODULES
  • RDLED 1/2 740MM LED MODULES
  • RDLED 1/2 740MM LED MODULES
Documents joints
Téléchargement
DATASHEET

1_DATASHEET MST RdLED 12 740mm.pdf.pdf

Téléchargement (1010.88k)

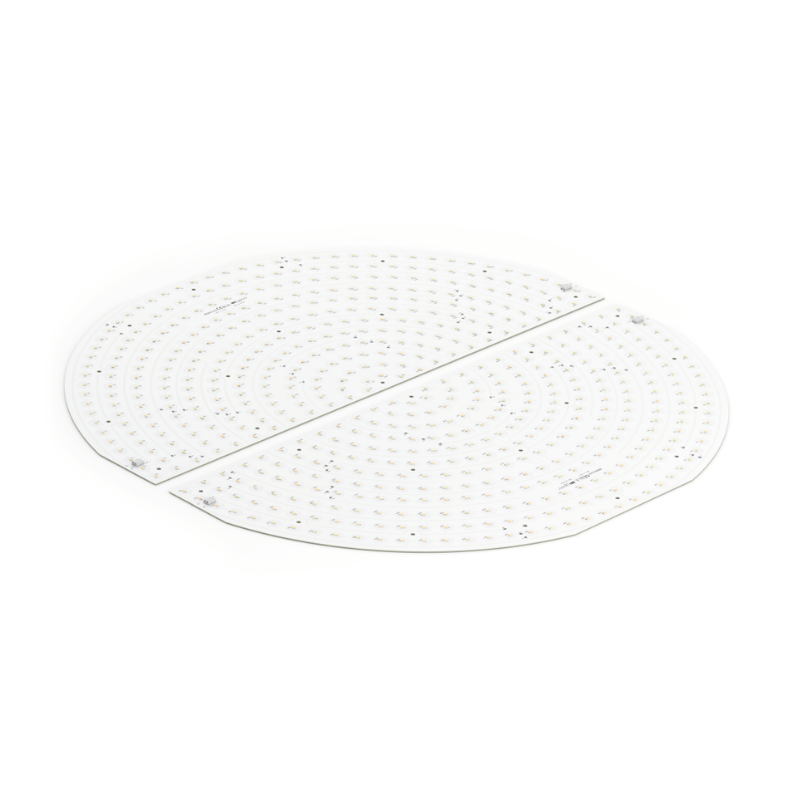

RDLED 1/2 740MM LED MODULES

RdLED 1/2 740mm
Up to 206lm/W - half-round 740mm modules
Description

RdLED 1/2 740mm

  • MST built-in constant-current linear LED modules for premium indoor lighting, optimized for LEDiL DAISY-7X1 and DAISY-28X1 optics.
  • 4C four-connector parallel system for SELV operation. Formats: 280x24mm, 560x24mm and 1120x24mm; nominal 1100lm, 2200lm and 4400lm, all with 42V designation.
  • CRI 80 CJ G4 and CN G3 variants at 3000K and 4000K; other CCT and CRI on request.
  • CJ G4 280mm at 4000K: 150mA, 38V forward voltage, 5.7W and 1114lm, up to 196lm/W. The 1120mm version delivers 4458lm at 600mA and 23W.
  • Parallel limits: 6 modules of 280mm, 3 of 560mm or 1 of 1120mm. Mixed lengths must not exceed 1680mm total. Use modules from the same V-code group.
  • 120° beam angle, 3 SDCM and RG1 unlimited. Rated performance temperature 65°C; maximum safe case temperature 85°C. CE, RoHS and REACH compliant; ENEC is not declared.
  • The supplied filename is marked coming soon; current commercial availability is not established by this datasheet.
  • Re-workable push-in terminals accept 0.2-0.5mm² solid or flexible wires, with a 7mm strip length.
  • Built-in LED modules require suitable luminaire protection; no standalone IP rating.
  • CJ G4, 3000K: 280 / 560 / 1120mm ordering codes: 1010 137 65546; 1010 137 65646; 1010 137 65746.
  • CJ G4, 4000K: 280 / 560 / 1120mm ordering codes: 1010 137 65846; 1010 137 65946; 1010 137 66046.
  • CN G3, 3000K: 280 / 560 / 1120mm ordering codes: 1010 147 23046; 1010 147 23146; 1010 147 23246.
  • CN G3, 4000K: 280 / 560 / 1120mm ordering codes: 1010 147 23346; 1010 147 23446; 1010 147 23546.
