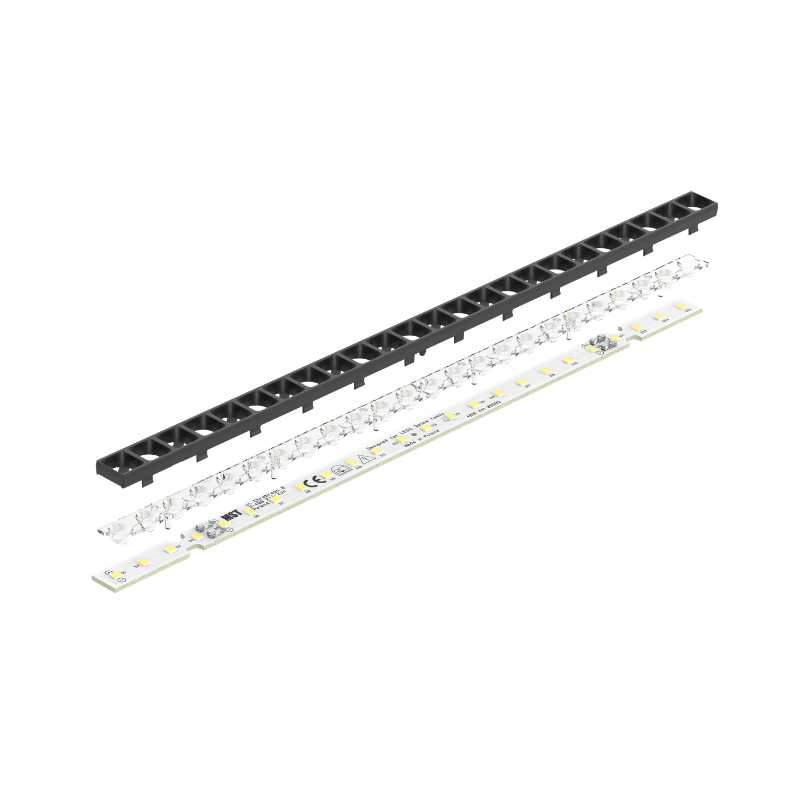

LINLED 279X10.5MM 4C DALINE-10 LED MODULES
LinLED 279x10.5mm 4C DALINE-10
Up to 193lm/W - slim DALINE-10 architectural modules
Description
LinLED 279x10.5mm 4C DALINE-10
- MST built-in constant-current linear LED modules for architectural lighting, optimized for LEDiL DALINE-10 optics.
- 279x10.5mm format, nominal 1100lm/36V designation, four-connector 4C SELV parallel system.
- CRI 80 CJ G4 at 2700K, 3000K or 4000K; other CCT and CRI on request.
- At 185mA nominal current, 33V forward voltage and 6W, the 2700K version delivers 1047lm at 174lm/W; 3000K delivers 1122lm at 186lm/W; 4000K delivers 1167lm at 193lm/W.
- Operating current range 20-600mA; maximum 6 modules in parallel. Working-voltage rating 60Vdc; use a suitable SELV driver and the supplied parallel-connection diagram.
- 120° beam angle, 3 SDCM and RG1 unlimited. Rated performance temperature 65°C; maximum safe case temperature 85°C. CE, RoHS and REACH compliant; ENEC is not declared.
- Re-workable push-in terminals accept 0.08-0.35mm² solid or flexible wires (AWG 28-22), with a 3-4mm strip length.
- No standalone IP rating; suitable protection must be provided by the luminaire or enclosing system.
- CJ G4 CRI 80, 2700K / 3000K / 4000K ordering codes: 1010 137 34646; 1010 137 07146; 1010 137 07246.
-
